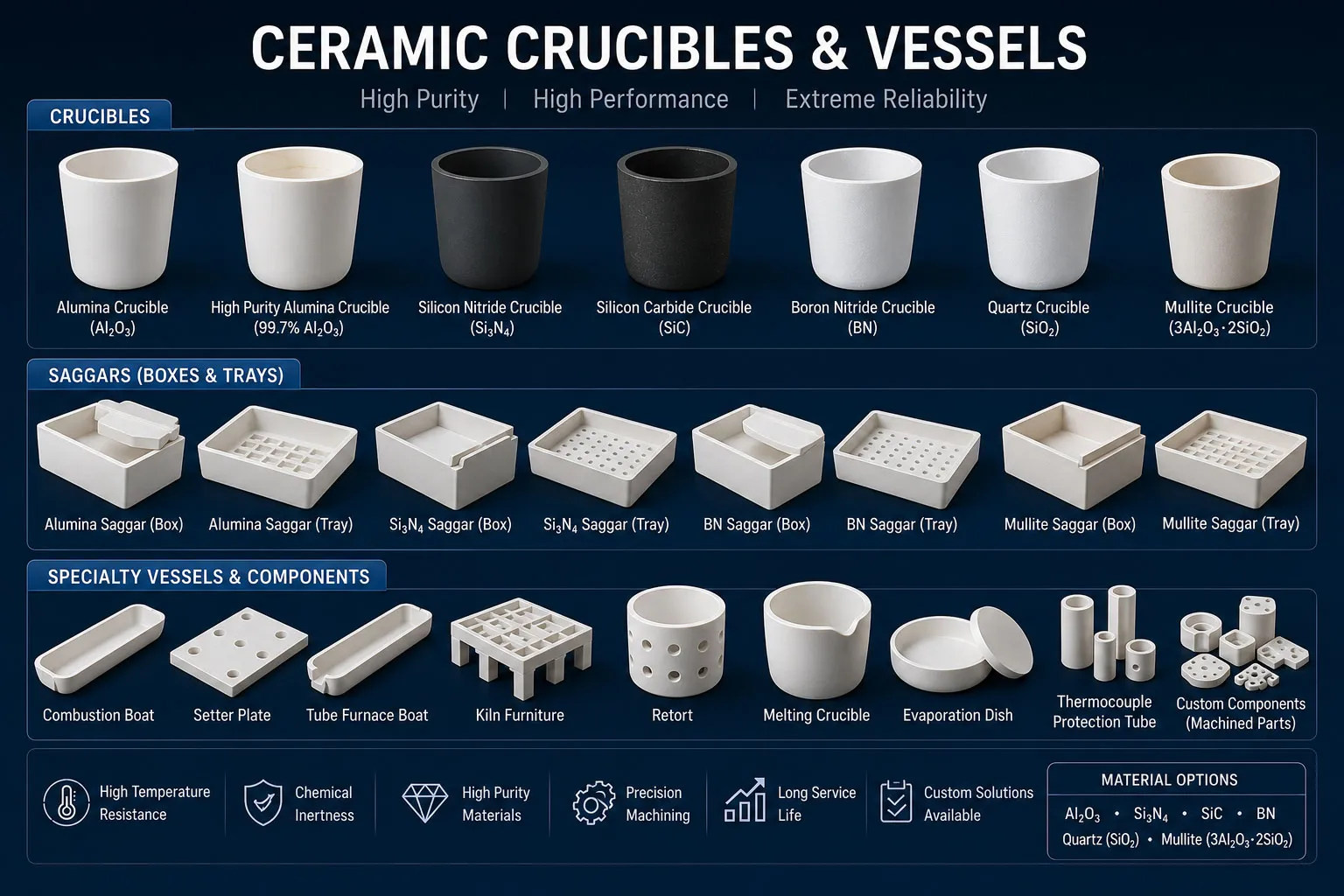

Advanced ceramic materials, with their exceptional high-temperature resistance, chemical inertness, and mechanical strength, have become indispensable key materials in modern industry and scientific research. In particular, high-purity alumina (Al₂O₃), silicon nitride (Si₃N₄), boron nitride (BN), silicon carbide (SiC), boron carbide (B₄C), and high-thermal-conductivity aluminum nitride (AlN) —representing both oxide and non-oxide ceramics—demonstrate unparalleled advantages in the production of high-precision, long-life ceramic crucibles, vessels, and components (such as combustion boats, tube furnace cores, thermocouple protection tubes, insulation assemblies, kiln furniture, and setter plates).
Through advanced processes including cold isostatic pressing, high-temperature sintering, and CNC precision machining, these ceramic vessels and components reliably meet the demanding requirements of applications ranging from extreme high-temperature melting to high-purity semiconductor crystal growth.
1. Superior High-Temperature Resistance and Thermal Shock Stability
Ultra-High Temperature Tolerance: Alumina and zirconia ceramic crucibles and setter plates can operate continuously at 1600°C–1800°C, while silicon nitride and silicon carbide materials can withstand extreme temperatures exceeding 2000°C, making them suitable for precious metal smelting and rare-earth material processing.
Excellent Thermal Shock Resistance: Silicon nitride and silicon carbide ceramics possess extremely low coefficients of thermal expansion. Vessels and components made from these materials can endure rapid heating and cooling cycles without cracking, significantly extending service life in vacuum or atmosphere-controlled sintering furnaces.
Uniform Thermal Field Distribution: High-thermal-conductivity aluminum nitride ceramic heat spreaders and setter plate components ensure exceptional temperature uniformity within the furnace, improving yield rates in crystal growth and material synthesis processes.
2. Outstanding Chemical Stability and Corrosion Resistance
Strong Acid and Alkali Corrosion Resistance: Dense alumina and zirconia crucibles and grinding jars feature smooth inner surfaces and extremely low porosity, effectively resisting chemical attack from molten glass, metal solutions, and strong alkaline fluxes while preventing impurity introduction.
Neutron Absorption and Nuclear Applications: Boron carbide ceramics, with their unique neutron absorption cross-section, are widely used as shielding materials and neutron-absorbing crucible components in the nuclear industry.
3. High Hardness and Wear-Resistant Mechanical Properties
Abrasion-Resistant Structural Components: Silicon carbide and silicon nitride are not only extremely hard but also exhibit excellent self-lubricating properties. Grinding jars, sealing rings, and nozzles made from these materials perform exceptionally well in powder processing and jet milling operations.
Lightweight and High Strength: Machinable boron nitride ceramics combine high-temperature stability with ease of precision machining into complex-shaped crucibles and insulating support components.
4. Precisely Controllable Electrical Properties
Electrical Insulation: High-purity alumina and boron nitride are excellent electrical insulators, widely used as insulating tubes for high-temperature heating elements and thermocouple protection sheaths.
Anti-Static and Arc Prevention: In semiconductor electronics processing, silicon nitride ceramic fixtures and carrying components effectively prevent static charge accumulation, protecting precision chips from electrostatic discharge damage.
1. Metallurgy and Material Smelting
High-Temperature Alloy Melting: Calcia-stabilized zirconia crucibles are used for melting titanium alloys and nickel-based superalloys, preventing reactions between the vessel and active metals.
Rare Earth and Precious Metal Refining: High-purity alumina or boron nitride-lined crucibles and distillation components are employed in vacuum distillation and zone refining purification of high-purity metals.
2. Semiconductor and Crystal Growth
Single Crystal Growth Carriers: Large-sized silicon nitride or silicon carbide ceramic crucibles serve as containers for polycrystalline silicon feedstocks, playing a critical role in thermal field support within crystal pullers; matching insulation rings, support pedestals, and other components are equally essential.
LED Substrate Heat Treatment: Aluminum nitride ceramic carrier plates and heat spreader components, due to their thermal expansion compatibility with materials like gallium nitride, are widely used in MOCVD epitaxial wafer heat treatment processes.
3. Laboratory and Research Fields
Thermal Analysis Chemistry: Alumina and zirconia micro-crucibles are standard consumables for Differential Scanning Calorimetry (DSC) and Thermogravimetric Analysis (TGA); matching sample boats, holders, and other accessories are frequently procured.
High-Temperature Synthesis Experiments: Silicon carbide furnace tubes, tube plugs, and boron nitride sample boats for tube furnaces provide inert reaction environments for the synthesis of novel 2D materials and superconducting compounds.
4. New Energy and Specialty Industries
Battery Material Sintering: Alumina or magnesia crucibles and sagger components are used in the solid-state sintering process of lithium battery cathode materials (such as NCM precursors).
Photovoltaic Industry: Quartz ceramic and silicon carbide ceramic assemblies (including crucibles, insulation plates, carrier rails, and other components) function as insulation and load-bearing parts in multi-crystalline silicon ingot casting furnaces.
Ceramic Products
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Ceramic Crucible and relative products please feel free to contact us or click on the needed products to send an inquiry.
Process of Ceramic Products
T/T, Western Union, Paypal, Credit Card etc.
By air, by sea, by express, as customers request.
Forming Processes: Cold Isostatic Pressing (CIP), Dry Pressing, Slip Casting, Tape Casting
Sintering Technologies: Pressureless Sintering, Atmosphere-Controlled Sintering, Hot Pressing, Spark Plasma Sintering (SPS)
Precision Machining: 5-Axis CNC Engraving, Centerless Grinding, Laser Drilling, ID/OD Grinding
Q1: How do I choose the right material for ceramic crucibles or components?
A1: Selection is primarily based on three factors: operating temperature (whether it exceeds 1600°C), chemical environment (whether exposure to acid/alkaline melts or reactive metals is involved), and thermal shock frequency (whether rapid heating/cooling cycles are frequent). For example, smelting aluminum and aluminum alloys calls for silicon nitride-bonded silicon carbide crucibles and matching stirring paddles, while laboratory analysis typically favors high-purity alumina crucibles and sample boats.
Q2: Are ceramic vessels and components prone to cracking at high temperatures? How can this be avoided?
A2: Improper heating/cooling rates are the primary cause of cracking. We recommend strictly following product instructions for preheating and gradient temperature ramping. For applications involving frequent thermal shock, materials with extremely low thermal shock coefficients—such as silicon nitride or quartz ceramics—and their associated components are recommended. Additionally, it is essential to inspect vessels for micro-cracks before use.
Q3: How does your company ensure the purity of ceramic crucibles, vessels, and components to prevent material contamination?
A3: We ensure purity by using high-purity raw materials (such as 99.7% or 99.99% alumina), strictly controlling the production environment, and employing precision machining after sintering to remove the surface sintering layer, guaranteeing the purity of contact surfaces. For extreme high-purity requirements, we also offer boron nitride inner-wall coatings, as well as high-purity alumina/aluminum nitride protective sheath components.
Q4: Can you customize non-standard or special-shaped ceramic vessels and components?

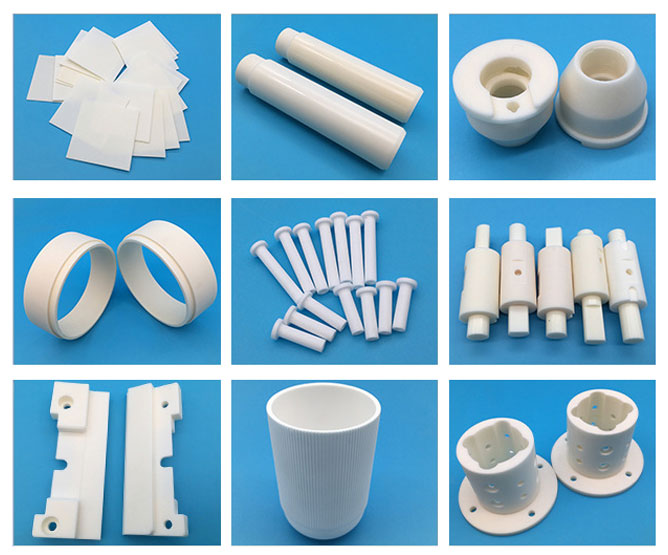

A4: Absolutely. With our advanced 3D measurement and 5-axis machining capabilities, we can manufacture custom products according to your drawings or 3D scan data, including flanged special-shaped tubes, lidded crucibles, multi-hole setter plates, positioning brackets, and complex flow-channel structural components.
Q5: Why are boron carbide ceramics relatively expensive?
A5: Boron carbide (B₄C) is the third-hardest material known,which is second only to diamond and cubic boron nitride. Its densification through sintering is extremely challenging, typically requiring high-temperature hot pressing or spark plasma sintering, which results in higher production costs and tighter yield control. However, its extreme hardness and neutron absorption capabilities make it irreplaceable in ballistic armor and nuclear industry shielding components.
Q6: What is the difference between aluminum nitride and boron nitride ceramics in thermal management components?
A6: Aluminum nitride (AlN) is distinguished by its high thermal conductivity (approximately 170–200 W/mK) and is primarily used as heat-dissipating substrates and carrier plates for high-power electronic devices. Boron nitride (BN), on the other hand, emphasizes high-temperature insulation and thermal shock resistance. It is relatively soft and machinable, making it ideal for use as insulating gaskets in high-temperature furnaces, thermocouple protection sheaths, and evaporation baffles in metal deposition processes.
