What Are Silicon Carbide Whiskers? A Reinforcing Material for Batteries and Composites
Silicon Carbide (SiC) Whiskers
1. Introduction to Silicon Carbide Whiskers
1.1 What Are Silicon Carbide (SiC) Whiskers?
Silicon Carbide (SiC) Whiskers are high-aspect-ratio single-crystal fiber reinforcement materials, precisely engineered with a length range of 10–50 μm. Combining the inherent hardness of ceramics with exceptional tensile strength, these whiskers are designed to significantly improve the mechanical and thermal properties of advanced composites, ceramics, and metal matrices.Unlike continuous fibers, which are woven into fabrics or prepregs, Silicon Carbide (SiC) Whiskers are discontinuous single crystals that can be dispersed into a matrix material. This allows them to reinforce complex shapes and thin sections that would be difficult to reinforce with continuous fibers. Unlike particulate fillers, which have a low aspect ratio, Silicon Carbide (SiC) Whiskers have a high aspect ratio (10:1 to 50:1), which enables them to bridge cracks and carry load more effectively.
1.2 Why Whisker Reinforcement Matters
Advanced composites are increasingly used in applications that demand high strength, high stiffness, and low weight. However, many matrix materials — such as ceramics, metals, and polymers — have inherent limitations in tensile strength, fracture toughness, and thermal shock resistance.Silicon Carbide (SiC) Whiskers address these limitations by providing reinforcement at the microscopic scale. When dispersed in a matrix, they bridge cracks, carry tensile loads, and improve the overall mechanical properties of the composite. This makes them valuable for applications ranging from cutting tools and engine components to electronic packaging and battery materials.
1.3 Why Silicon Carbide (SiC) Whiskers Stand Out
Among reinforcement materials, Silicon Carbide (SiC) Whiskers offer a unique combination of properties. They have high tensile strength (>20 GPa), high elastic modulus (~480 GPa), and high hardness (Mohs 9.5). They also have high thermal stability, maintaining structural integrity at temperatures exceeding 1600°C in inert atmospheres. And they have low thermal expansion, which minimizes thermal mismatch stresses in composite systems.This combination of properties makes Silicon Carbide (SiC) Whiskers suitable for demanding applications where conventional reinforcement materials would fail. They are particularly valuable in ceramic matrix composites (CMCs), metal matrix composites (MMCs), and high-performance polymer composites.

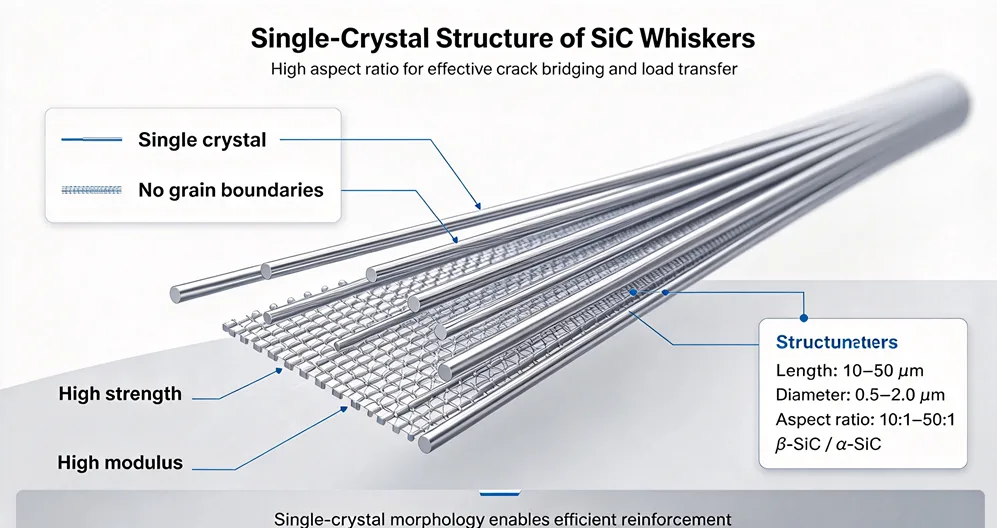

Single-Crystal Structure of SiC Whiskers
2. Understanding the Basics of Silicon Carbide Whiskers
2.1 Crystal Structure and Morphology
Silicon Carbide (SiC) Whiskers are single crystals of silicon carbide, typically in the β-SiC or α-SiC form. They have a rod-like or needle-like morphology with a diameter of 0.5–2.0 μm and a length of 10–50 μm. The aspect ratio (length to diameter) ranges from 10:1 to 50:1.The single-crystal structure gives Silicon Carbide (SiC) Whiskers their high strength and stiffness. Unlike polycrystalline fibers, which have grain boundaries that can act as weak points, single-crystal whiskers have no grain boundaries and therefore have higher strength and better creep resistance.
2.2 Key Properties of Silicon Carbide (SiC) Whiskers
Silicon Carbide (SiC) Whiskers offer a combination of properties that make them suitable for advanced composite applications.Optimized length distribution (10–50 μm): Ideal for homogeneous dispersion in various matrices without excessive agglomeration.
High thermal stability: Maintains structural integrity at temperatures exceeding 1600°C in inert atmospheres.
Excellent mechanical reinforcement: High elastic modulus (~480 GPa) and tensile strength (>20 GPa) dramatically improve fracture toughness and wear resistance.
Chemical inertness: Resistant to most acids and alkalis, ensuring durability in harsh environments.
Low thermal expansion: Minimizes thermal mismatch stresses in composite systems.
High hardness: Mohs hardness of 9.5, providing excellent wear resistance.
2.3 Comparison with Other Reinforcement Materials
| Property | SiC Whiskers | Carbon Fiber | Alumina Fiber | Silicon Carbide Particles |
| Tensile Strength (GPa) | >20 | 3–7 | 1.5–2.5 | — |
| Elastic Modulus (GPa) | ~480 | 200–500 | 150–300 | 400–450 |
| Density (g/cm³) | 3.21 | 1.8–2.0 | 3.0–3.5 | 3.21 |
| Thermal Stability (°C) | >1600 (inert) | 400–600 (air) | 1200–1400 | >1600 (inert) |
| Aspect Ratio | 10:1–50:1 | Continuous | Continuous | 1:1 |
| Reinforcement Mechanism | Crack bridging | Load carrying | Load carrying | Dispersion strengthening |

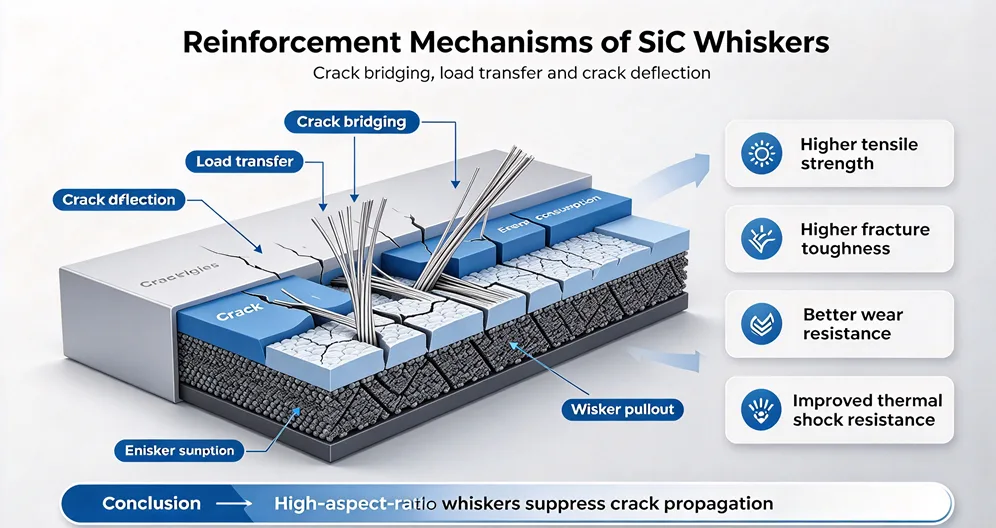

Reinforcement Mechanisms of SiC Whiskers
3. Why Whisker Reinforcement Matters
3.1 The Limitations of Unreinforced Materials
Many advanced materials have inherent limitations that restrict their use in demanding applications. Ceramics are strong in compression but weak in tension and prone to brittle fracture. Metals are strong and ductile but have limited high-temperature strength and wear resistance. Polymers are lightweight and corrosion-resistant but have low strength and stiffness.Silicon Carbide (SiC) Whiskers address these limitations by providing reinforcement at the microscopic scale. When dispersed in a matrix, they improve tensile strength, fracture toughness, and thermal shock resistance.
3.2 How Whiskers Strengthen Composites
Silicon Carbide (SiC) Whiskers strengthen composites through several mechanisms. First, they carry a portion of the applied load, reducing the stress on the matrix. Second, they bridge cracks, preventing them from propagating. Third, they deflect cracks, forcing them to travel a longer and more tortuous path, which consumes more energy. Fourth, they improve the stiffness of the composite through their high elastic modulus.These mechanisms work together to improve the mechanical properties of the composite, including tensile strength, flexural strength, fracture toughness, and wear resistance.
3.3 Why Length Distribution Matters
The length distribution of Silicon Carbide (SiC) Whiskers is critical for achieving optimal reinforcement. Whiskers that are too short provide limited crack bridging and load transfer. Whiskers that are too long tend to agglomerate and are difficult to disperse uniformly.The 10–50 μm length range of Silicon Carbide (SiC) Whiskers is optimized to balance effective crack bridging with ease of dispersion. This range is ideal for most ceramic and metal matrix composites.

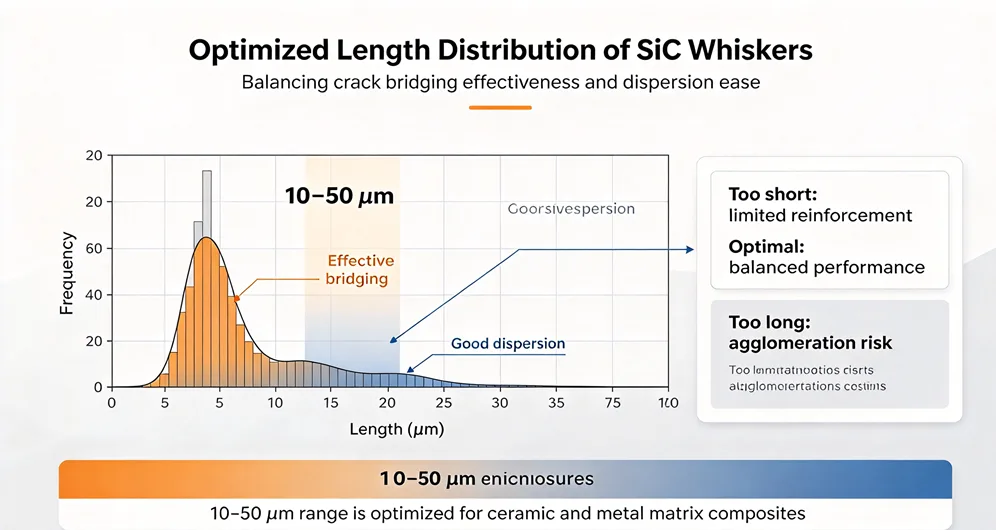

Optimized Length Distribution of SiC Whiskers
4. How Silicon Carbide Whiskers Improve Composite Performance
4.1 Ceramic Matrix Composites (CMCs)
Silicon Carbide (SiC) Whiskers are widely used to reinforce ceramic matrices such as alumina (Al₂O₃), zirconia (ZrO₂), and silicon nitride (Si₃N₄). The whiskers improve fracture toughness and thermal shock resistance, making the composites suitable for cutting tools and engine components.The reinforcement mechanism in CMCs is primarily crack bridging and crack deflection. When a crack encounters a whisker, it must either break the whisker or go around it. Breaking a high-strength whisker requires significant energy, and going around it creates a tortuous path that also consumes energy. This increases the fracture toughness of the composite.
4.2 Metal Matrix Composites (MMCs)
Silicon Carbide (SiC) Whiskers are used to reinforce metal matrices such as aluminum, magnesium, and titanium. The whiskers improve strength, stiffness, and wear resistance while maintaining the ductility and thermal conductivity of the metal.The reinforcement mechanism in MMCs is primarily load transfer. The whiskers carry a portion of the applied load, reducing the stress on the metal matrix. The high elastic modulus of the whiskers also improves the stiffness of the composite.
4.3 Refractory Materials
Silicon Carbide (SiC) Whiskers are used to improve the thermal shock resistance of refractory materials such as kiln furniture and crucibles. The whiskers bridge cracks that form during thermal cycling, preventing them from propagating and causing failure.4.4 Abrasion-Resistant Coatings
Silicon Carbide (SiC) Whiskers are used to add wear resistance to industrial seals, nozzles, and pump components. The high hardness of the whiskers improves the abrasion resistance of the coating, extending the service life of the component.4.5 Electronic Packaging
Silicon Carbide (SiC) Whiskers are used in high-thermal-conductivity substrates for power devices. The high thermal conductivity of the whiskers helps dissipate heat, while the low thermal expansion minimizes thermal mismatch stresses.
SiC Whiskers Across Applications
5. Key Technical Specifications of Silicon Carbide Whiskers
| Parameter | Value / Description |
| Material | Silicon Carbide (SiC) |
| Crystal Structure | Single-crystal (β-SiC / α-SiC) |
| Length Range | 10 – 50 μm |
| Diameter | 0.5 – 2.0 μm (typical) |
| Aspect Ratio | 10:1 – 50:1 |
| Density | 3.21 g/cm³ |
| Melting Point | ~2730 °C (decomposes) |
| Tensile Strength | > 20 GPa |
| Elastic Modulus | ~480 GPa |
| Hardness (Mohs) | 9.5 |
| Color | Greenish-gray to dark gray |
| Thermal Stability | >1600°C in inert atmospheres |
| Chemical Resistance | Resistant to most acids and alkalis |
6. Matching Silicon Carbide Whiskers to Your Application
6.1 Ceramic Matrix Composites (CMCs)
For CMCs, Silicon Carbide (SiC) Whiskers are added to alumina, zirconia, or silicon nitride matrices to improve fracture toughness and thermal shock resistance. The whisker content typically ranges from 10 to 30 vol%.6.2 Metal Matrix Composites (MMCs)
For MMCs, Silicon Carbide (SiC) Whiskers are added to aluminum, magnesium, or titanium matrices to improve strength, stiffness, and wear resistance. The whisker content typically ranges from 10 to 25 vol%.6.3 Refractory Materials
For refractory materials, Silicon Carbide (SiC) Whiskers are added to improve thermal shock resistance. The whisker content typically ranges from 5 to 15 vol%.6.4 Abrasion-Resistant Coatings
For abrasion-resistant coatings, Silicon Carbide (SiC) Whiskers are added to improve wear resistance. The whisker content typically ranges from 10 to 30 vol%.6.5 Electronic Packaging
For electronic packaging, Silicon Carbide (SiC) Whiskers are added to improve thermal conductivity and reduce thermal expansion. The whisker content typically ranges from 30 to 60 vol%.

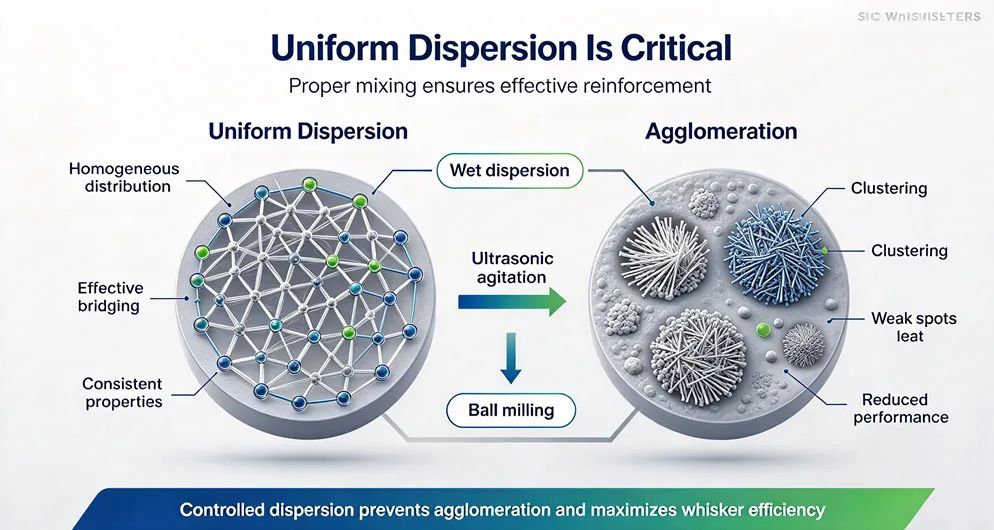

Uniform Dispersion Is Critical
7. Common Misconceptions About Silicon Carbide Whiskers
7.1 "Whiskers Are the Same as Fibers"
Silicon Carbide (SiC) Whiskers are not the same as continuous fibers. Whiskers are single crystals with a high aspect ratio, while fibers are polycrystalline or amorphous with a continuous length. Whiskers are dispersed into a matrix, while fibers are woven or wound.7.2 "Whiskers Are Easy to Disperse"
Silicon Carbide (SiC) Whiskers tend to agglomerate because of their high surface area and high aspect ratio. Proper dispersion techniques, such as wet dispersion with ultrasonic agitation or ball milling, are required to achieve uniform distribution.7.3 "Whiskers Are Safe to Handle"
Silicon Carbide (SiC) Whiskers are respirable fibers. Proper engineering controls (local exhaust ventilation, closed transfer) and personal protective equipment (N95/P100 mask, gloves, goggles) are required when handling them. Do not dry sweep.7.4 "Whiskers Work in All Matrices"
Silicon Carbide (SiC) Whiskers are compatible with many matrices, but not all. Compatibility depends on the matrix material, processing temperature, and chemical interactions. Compatibility testing is recommended before full-scale production.7.5 "Whiskers Are Too Expensive"
While Silicon Carbide (SiC) WhiskersLeave a Reply
