Resin-Based Hard Carbon Anode Material - High-Consistency Sodium Lithium Battery

Name: Resin-Based Hard Carbon Anode Material - High-Consistency Sodium Lithium Battery
Brand: TRUNNANO
Availability: InStock
Rating: 5 (1 reviews)

High-performance resin-based hard carbon anode. Offers exceptional batch consistency, high purity, tunable structure, and outstanding mechanical strength for sodium-ion, lithium-ion, and silicon-carbon composite applications.

INQUIRY

PDF Format

Description

Product Overview

Our resin-based hard carbon is synthesized primarily from phenolic resin and epoxy resin precursors,delivering electrochemical performance comparable to biomass-derived hard carbon while offering superior batch-to-batch consistency—making it a commercially viable solution for sodium-ion battery applications.Phenolic resin,in particular,demonstrates exceptional potential among hard carbon precursors due to its high carbon yield and favorable reversible capacity,and has been widely adopted by leading industry players.

Resin-Based Hard Carbon

Key Advantages

Unmatched Consistency&Controllability
Synthetic resins are chemically homogeneous with minimal batch-to-batch variation,ensuring product consistency and structural reproducibility far superior to biomass-based hard carbons.This makes our material ideal for large-scale production where uniformity is critical.
Ultra-High Purity&High Capacity
Synthesized from resin precursors with extremely low impurity content,delivering high specific capacity output.
Tailorable Initial Coulombic Efficiency(ICE)
Through pore-forming agents and crosslinking modification strategies,the ICE of phenolic resin-based hard carbon can be precisely engineered to meet specific application requirements.
Excellent Mechanical Strength
The carbon skeleton derived from phenolic resin exhibits high single-particle strength(250–400 MPa)after high-temperature carbonization,effectively resisting volume expansion during charge–discharge cycles and maintaining electrode structural integrity.
Highly Tunable Structure
By adjusting the degree of polymerization,crosslinking density,and carbonization parameters,we precisely control interlayer spacing,pore structure,and specific surface area to achieve targeted sodium storage performance optimization.

Technical Specifications

Parameter	Unit	Specification	Test Method/Instrument
Particle Size–D10	µm	1.8±2	Laser Diffraction Particle Size Analyzer
Particle Size–D50	µm	7.0±2	Laser Diffraction Particle Size Analyzer
Particle Size–D90	µm	13.0±3	Laser Diffraction Particle Size Analyzer
Particle Size–D100	µm	≤21.0	Laser Diffraction Particle Size Analyzer
Moisture	%	≤1.0	Moisture Analyzer
pH Value	–	7.0–11.0	pH Meter
Ash Content	%	≤0.3	Muffle Furnace Calcination
Tap Density	g/cm³	0.75±0.05	Tap Density Tester
Compacted Density	g/cm³	1.0±0.1	Compaction Density Tester
Specific Surface Area(BET)	m²/g	≤5	BET Surface Area Analyzer(Static Method)
Initial Charge Capacity(0.1C/0.1C,0–2.5 V)	mAh/g	320±10	Neware Battery Test System
Initial Coulombic Efficiency	%	≥90	Neware Battery Test System

Notes:
NMP-based coin cell formulation:HC:SP:PVDF=92:4:4(by weight).
Aqueous formulation recommended:HC:SP:CMC:SBR=94:2:1.5:2.5(by weight).

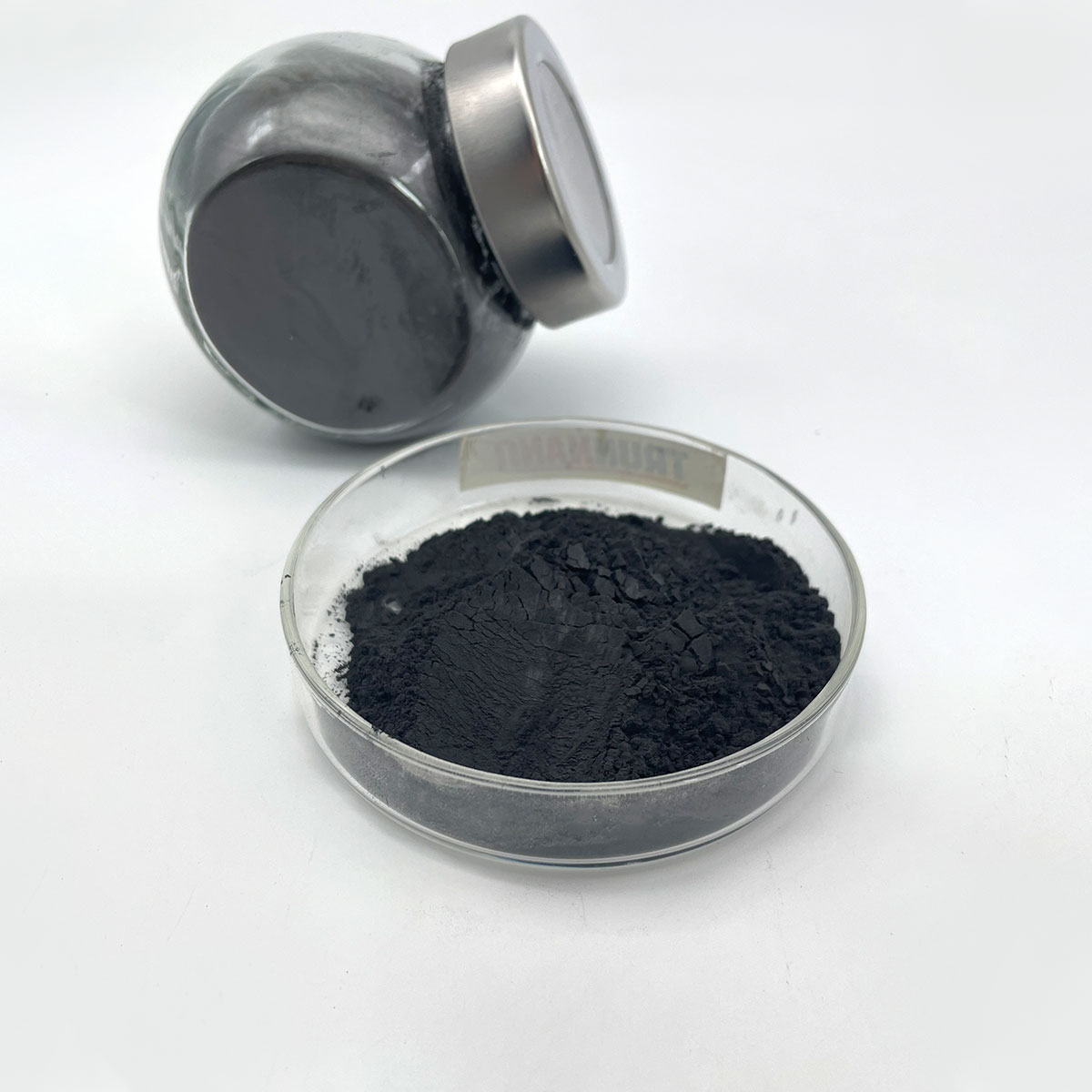

Morphology

Irregular block-shaped primary particles with a bimodal distribution,allowing fine particles to effectively fill voids between larger particles.

Applications

Sodium-Ion Batteries:
E-bikes and low-speed electric vehicles
Large-scale energy storage systems(grid frequency regulation,commercial&industrial storage)
Low-temperature charging and high-rate discharge scenarios
Applications requiring high consistency,high ICE,and moderate cost tolerance
Lithium-Ion Batteries:
High-rate power batteries(EV start-stop,drones,power tools)
High-energy-density consumer electronics(smartphones,digital devices)
Energy storage systems demanding long cycle life and high capacity
Fast-charging batteries capable of 30C high-current discharge
Silicon-Carbon Composite Anode Carrier:
Phenolic resin-based porous carbon frameworks serve as ideal carriers for CVD-derived silicon-carbon anodes.The tunable micro/mesopore structure,excellent anti-swelling properties,and superior pressure resistance ensure uniform silane deposition,delivering high initial efficiency and extended cycle life.
Carbon Capacitors:
Suitable for high-power-density and high-energy-density capacitive energy storage devices.

About Us

TRUNNANO is a leading supplier of high-performance battery materials for lithium-ion and sodium-ion batteries. Our portfolio includes nano cathodes, silicon-carbon anodes, hard carbon, and specialty additives. With strict quality control and consistent purity, we deliver reliable solutions for 3C electronics, power tools, and energy storage systems. Committed to innovation, TRUNNANO drives the future of energy storage with cutting-edge materials and dedicated customer support.

Packaging

Option 1–Bulk Bag(Ton Bag)
Net weight:300 kg/bag
Outer bag:780×780×600 mm
Inner liner:830 mm(W)×650 mm(H)
Storage&handling:Keep dry;store on pallets;max stack height:2 layers
Option 2–Carton+Aluminum Laminated Film/PE Bag
Net weight:20 kg/carton(4×5 kg bags)
Inner packaging:5 kg/bag in aluminum-laminated film or PE bag
Carton dimensions:600×500×400 mm
PE bag dimensions:600×400 mm
Storage&handling:Keep dry;store on pallets;max stack height:3 layers

Transport&Storage

Store in a dry,well-ventilated area free from contaminants.
Handle with care during transport to avoid damage to inner sealed bags.Do not place heavy or sharp objects on cartons to prevent packaging damage.

FAQ

Q1:How does resin-based hard carbon compare to biomass-based hard carbon?
Resin-based hard carbon offers significantly better batch-to-batch consistency and structural reproducibility,higher purity,and superior mechanical strength(250–400 MPa),while delivering comparable electrochemical performance.However,biomass-based variants may have a slight cost advantage.
Q2:Can this material be used in both sodium-ion and lithium-ion batteries?
Yes.It is primarily designed for sodium-ion anodes but also performs exceptionally well in lithium-ion systems,including high-rate power batteries and fast-charging applications up to 30C.
Q3:What makes phenolic resin a preferred precursor?
Phenolic resin offers high carbon yield,good reversible capacity,tunable pore structures through chemical modification,and excellent mechanical properties after carbonization.
Q4:How is the initial Coulombic efficiency controlled?
ICE can be tailored through the addition of pore-forming agents,crosslinking modification,and precise control of carbonization parameters,allowing targeted optimization for specific applications.
Q5:What is the recommended storage condition and shelf life?
Store in a dry,well-ventilated environment away from moisture and contaminants.Shelf life is 12 months under sealed,vacuum-packed conditions.Once opened,use within 48 hours and reseal immediately under vacuum.
