Overview of Boron Nitride Ceramic Heater System
Boron Nitride (BN) heating systems are specialty heating elements that use the unique homes of boron nitride to supply effective and trusted thermal management in a variety of applications. Boron nitride, especially hexagonal boron nitride (h-BN), is highly concerned for its outstanding thermal conductivity, electric insulation, chemical stability and mechanical strength.

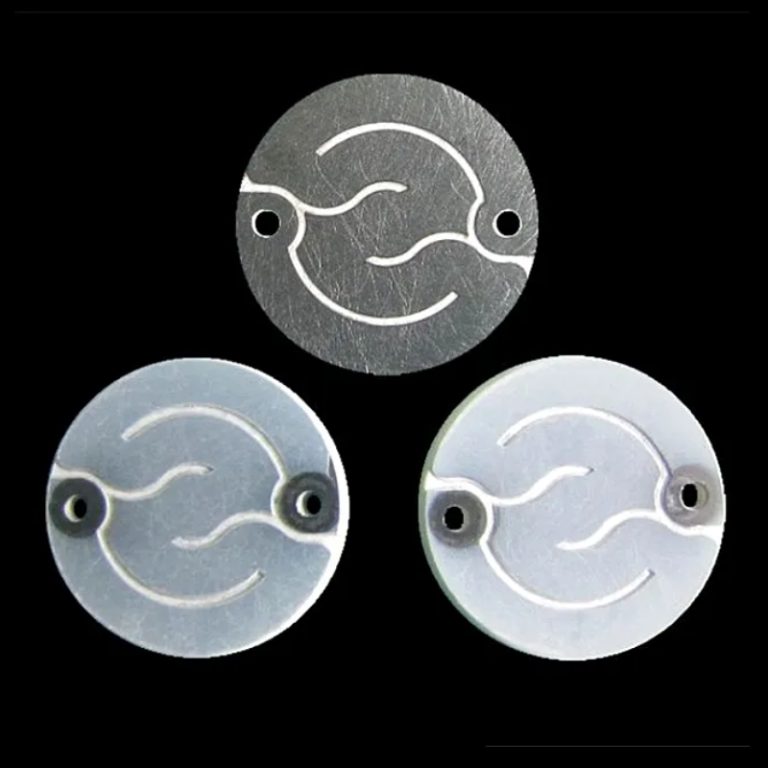

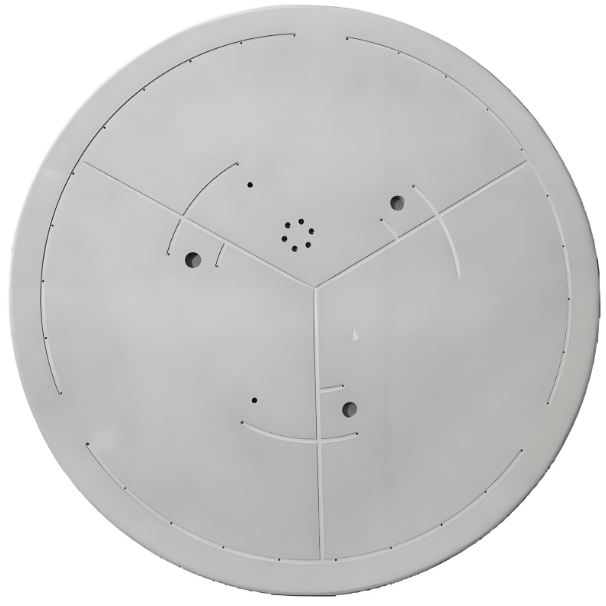

High Purity Boron Nitride Ceramic Heater system Ceramic Heating Element
Specifications of Boron Nitride Ceramic Heater System
|
Property |
Typical Value |
Unit |
Notes |
|
Material Type |
Hexagonal Boron Nitride (h-BN) |
|
Layered structure similar to graphite; most common form for heaters |
|
Density |
2.27 |
g/cm³ |
For h-BN |
|
Hardness (Mohs Scale) |
~2 |
|
Relatively soft compared to c-BN |
|
Melting Point |
>3,000 |
°C |
High melting point ensures stability in high-temperature environments |
|
Thermal Conductivity |
60 – 300 |
W/m·K |
Along the basal plane for h-BN |
|
Coefficient of Thermal Expansion (CTE) |
2.5 – 4.5 |
×10⁻⁶/°C |
Low CTE minimizes thermal expansion and contraction |
|
Electrical Resistivity |
>10¹² |
Ω·cm |
Excellent electrical insulation |
|
Dielectric Strength |
10 – 20 |
kV/mm |
Good dielectric properties |
|
Chemical Stability |
Chemically inert |
|
Resistant to most chemicals, even at high temperatures |
|
Friction Coefficient |
0.1 – 0.2 |
|
Self-lubricating properties |
|
Porosity |
<1% |
|
Typically very low porosity for dense sintered products |
|
Flexural Strength |
200 – 400 |
MPa |
Depends on manufacturing process and material type |
|
Compressive Strength |
1,000 – 3,000 |
MPa |
High compressive strength suitable for mechanical applications |
|
Operating Temperature Range |
-269 to +1,000 |
°C |
Wide range from cryogenic to high temperatures |
|
Neutron Absorption Cross Section |
Moderate |
barns |
Beneficial for nuclear applications |
|
Bandgap Energy |
5.9 – 6.2 |
eV |
Wide bandgap makes it suitable for high-power electronic devices |
|
Heating Element Material |
Nichrome, Molybdenum Disilicide |
|
Common materials for embedded heating elements |
|
Power Density |
Up to 50 |
W/cm² |
Varies based on heater design and application |
|
Response Time |
Fast |
Seconds |
Rapid heating and cooling cycles |
|
Uniformity of Heating |
±1 – 2% |
|
Ensures consistent temperature profiles |
Features of Boron Nitride Ceramic Heater
1. High thermal conductivity:
Efficient heat transfer enables fast heating and cooling down cycles.
2. Outstanding Electric Insulation:
Gives solid dielectric properties to guarantee safe operation in electric atmospheres.
3. Chemical Security:
Resistant to the majority of chemicals also at high temperatures, making sure resilience in destructive settings.
4. Low Coefficient of Thermal Development (CTE):
An extremely reduced coefficient of thermal expansion decreases the threat of cracking or deformation throughout temperature level modifications and keeps dimensional stability.
5. Mechanical Stamina:
High solidity and abrasion resistance add to lasting efficiency.
6. Wide operating temperature level variety:
Effective in air at temperatures as reduced as 1,000 ° C, with higher operating temperatures in vacuum or inert environments.
7. Self-lubricating residential properties:
The split structure of h-BN supplies all-natural lubrication and decreases friction between relocating components.
8. Non-toxic and chemically inert:.
Environmentally friendly and risk-free to deal with and dispose of.
Applications of Boron Nitride Ceramic Heater
1. Thermal Administration
Thermal exchangers: BN heating units are utilized in thermal exchangers where efficient warm transfer and chemical resistance are required. Their high thermal conductivity guarantees quick home heating and cooling down cycles.
Cooling Coats: Suitable for cooling jackets for digital equipment and machinery, they offer thermal monitoring and electric insulation.
2. Electronic devices and Semiconductors
Substrates and Insulation: Essential for substrates and insulation in semiconductor gadgets to make certain trusted operation under high thermal lots.
Warmth Sinks: Crucial for managing warm in power electronics, CPUs, GPUs, and other high performance digital components. BN warmth sinks boost thermal efficiency without jeopardizing electric insulation.
Wafer Processing: Utilized in semiconductor wafer handling tools to achieve uniform home heating throughout deposition, etching and annealing.
3. Automotive and Aerospace
Engine Parts: BN heaters are used in engine components that need to endure heats and destructive atmospheres, helping to improve durability and reliability.
Exhaust systems: Due to their thermal stability and chemical inertness, BN heaters are used in exhaust system elements to expand part life.
Power electronic devices: Crucial for electric and hy brid automobiles, where power components and inverters require effective thermal management.
4. Production and Processing
High-temperature molds: For molds made use of in metal spreading and other manufacturing procedures that need high thermal stability. BN heating units maintain dimensional precision even at high temperatures.
Precision Components: For accuracy design applications where dimensional security and thermal properties are crucial.
5. Chemical Handling
Reactor cellular linings: Used in activators where the material need to hold up against both hostile chemicals and high temperatures, BN heating units guarantee long-lasting durability and safety and security in severe atmospheres.
Process Heating: Made use of in industrial processes involving high temperature warm transfer, maintaining high thermal performance and chemical resistance.
6. Metallurgy
Crucibles and refractory elements: BN heating units are made use of in crucibles and various other refractory parts in metal melting and alloying processes to make sure pureness and consistency.
Annealing Heaters: Provide uniform heating for annealing heating systems in steel therapy procedures to enhance product buildings.
7. Power Manufacturing
Nuclear reactors: Parts in atomic power plants take advantage of the neutron absorption residential or commercial properties and thermal stability of BN and play a vital duty in reactor control and security.
Gas cells: Used as gas diffusion layers and driver carriers, BN's heat buildings and chemical security are used to boost the efficiency and resilience of gas cells.
8. Biomedical Applications
Medical gadgets: Due to its non-reactive and steady nature, it can be utilized in clinical gadgets to develop biocompatible layers on implants or devices.
Drug distribution systems: BN nanoparticles can be functionalized for targeted medication shipment by capitalizing on BN's biocompatibility and stability in organic tissues.
9. Research and Development
Advanced Products Advancement: Research and development of new products with application-specific homes to advance materials science and engineering.
Nanotechnology: Check out the one-of-a-kind quantum buildings of nanoelectronic and optoelectronic gadgets to progress innovation and development.
10. Environmental Applications
Stimulant Carriers: Provide secure platforms for catalyst fragments in a range of chain reactions, specifically high-temperature procedures, to promote sustainable and efficient catalysis.
Electrocatalysis: Energy conversion and storage space systems for electrochemical batteries to sustain environmentally friendly modern technologies.
Company Profile
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Boron Nitride Ceramic Heater, please feel free to contact us or click on the needed products to send an inquiry.
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
FAQs of Boron Nitride Ceramic Heater
What are the advantages of using boron nitride ceramic heaters?
Boron nitride heaters offer several advantages over conventional heating elements. They can operate at very high temperatures without degradation, have good resistance to thermal shock and maintain mechanical strength even at high temperatures. In addition, BN ceramics are resistant to oxidation and corrosion, making them suitable for use in harsh environments.
What types of applications are BN ceramic heaters typically used in?
These heaters are used in industries that require precise temperature control and high-temperature stability, such as semiconductor manufacturing, aerospace, metallurgy, and scientific research. They are also used in specialized equipment such as furnaces, kilns and reactors where chemical inertness is critical.
How do boron nitride ceramic heaters achieve uniform heating?
The high thermal conductivity of boron nitride allows for efficient heat transfer, resulting in uniform heating of the heater surface. This property minimizes hot spots and ensures uniform heat distribution, resulting in more consistent performance and improved process results.
Can BN ceramic heaters be customized to meet specific requirements?
Yes, many manufacturers offer customization options for BN heaters to meet specific needs. Customization can include variations in size, shape, power rating and mounting configuration. It is important to work with a supplier that can tailor a solution to the operating conditions and space constraints of your application.
What maintenance is required for BN ceramic heaters?
BN ceramic heaters typically require minimal maintenance due to their durability and resistance to wear and tear. However, it is also important to regularly monitor the heater's performance and check for any signs of damage or contamination that may affect its operation. If the heater has been exposed to dust or other particles for an extended period, it may need to be cleaned.
