Highly Wear-resistant and Corrosion-resistant Silicon Nitride Rods Si3N4 Industrial Ceramic Rods

Introduction of Silicon Nitride Rods
Silicon Nitride Rods are rod shaped parts made of silicon nitride (Si₃N₄) material with excellent high temperature stability, mechanical strength and corrosion resistance. Silicon nitride is a high-performance ceramic material widely used in industrial equipment in extreme environments.

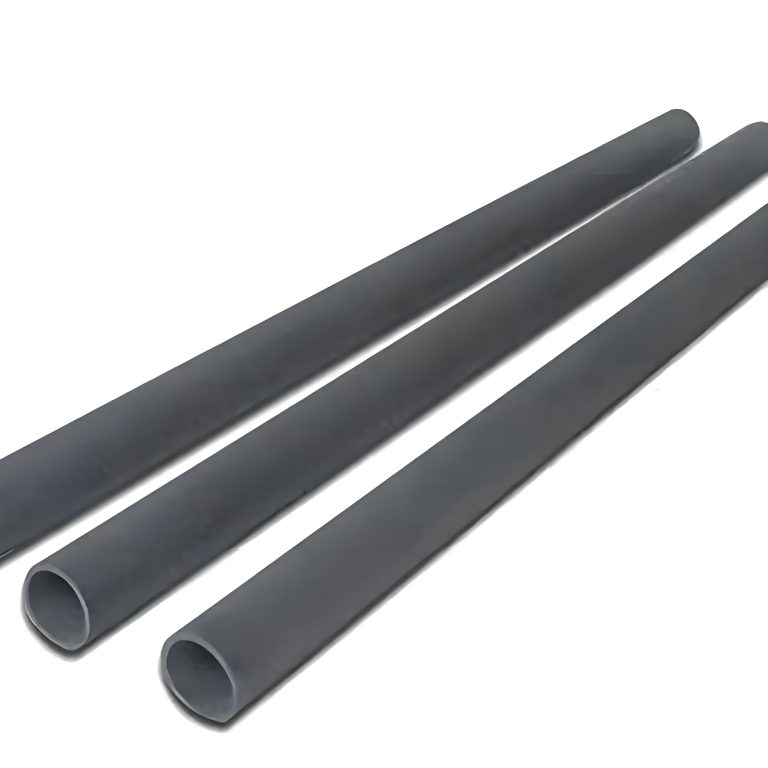

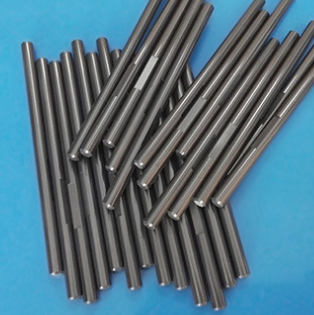

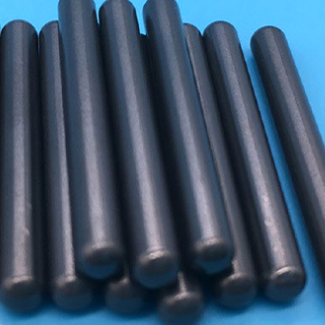

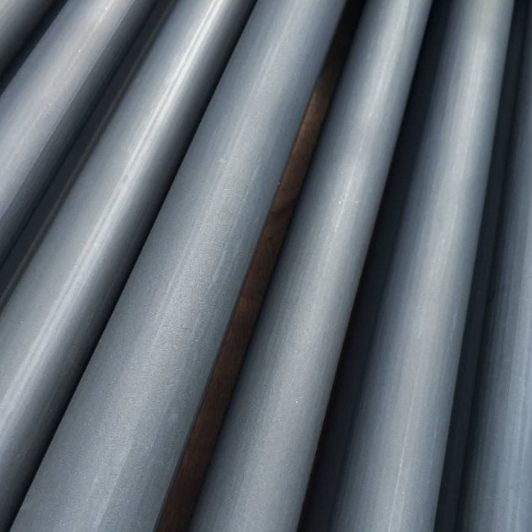

Silicon Nitride Rods


Features of Silicon Nitride Rods
High temperature resistance: it can work stably in high temperature environment above 1200°C and is not easy to be deformed or damaged.
High mechanical strength: with extremely high hardness and compressive strength, it can withstand large mechanical stress.
Corrosion resistance: good resistance to acid, alkali and other corrosive media.
Low coefficient of thermal expansion: good dimensional stability at high temperatures, not easy to crack due to temperature changes.
Excellent abrasion resistance: excellent performance under high speed friction or particle scouring conditions, long service life.
Strong thermal shock resistance: able to withstand rapid temperature changes without rupture.
Electrical insulation: Silicon nitride is a good electrical insulator for electrical and electronic applications.

Specifications of Silicon Nitride Rods


Applications of Silicon Nitride Rods
High-temperature furnaces: Used as high-temperature heating equipment in metallurgy, ceramics and glass manufacturing.
Semiconductor manufacturing: as high-temperature and corrosion-resistant components in wafer processing and etching equipment.
Chemical equipment: for structural support in reactors, stirrers and corrosive environments.
Mechanical engineering: as high-precision mechanical parts such as rails, slides and bearings.
Energy: as structural components in gas turbines, nuclear reactors and other high-temperature energy equipment.
Aerospace: for high-temperature fluid transfer and structural support components.
Environmental equipment: for high temperature flue gas treatment and filtration systems.

Packing and Storage
The product is in powder form and should be stored in a cool, ventilated place. Avoid inhalation when using it and keep away from open flames, heat sources, etc.

Packing and Storage


Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.

The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.

If you are looking for high-quality Silicon Nitride Rods please feel free to contact us or click on the needed products to send an inquiry.

 Company Profile

Payment Term
T/T, Western Union, Paypal, Credit Card etc.

Shipment Term
By air, by sea, by express, as customers request.

FAQs of Silicon Nitride Rods
Question 1: What are the main application areas of silicon nitride rods?
Answer: Silicon nitride rods are widely used in several industrial fields due to their excellent mechanical properties and high temperature stability. They can be used in the manufacture of engine components such as turbocharger rotors, bearings, seals, etc.; as refractory materials in the metallurgical industry; as corrosion-resistant components in the chemical industry; and as insulators or substrate materials in the electronics industry.

Question 2: What are the advantages of silicon nitride rods over other materials?
Answer: Silicon nitride rods have many advantages over metals and other ceramic materials. It possesses extremely high hardness and wear resistance, which makes it ideal for making parts that need to withstand abrasive working environments. In addition, it exhibits excellent thermal shock resistance and is able to undergo drastic temperature changes in a short period of time without breaking easily. Furthermore, silicon nitride rods have good oxidation resistance and chemical inertness, remaining stable even at high temperatures and not easily reacting with most chemicals.

Question 3: Are silicon nitride rods suitable for use in high-temperature environments?
Answer: Yes, silicon nitride rods are very suitable for use in high temperature environments. It can be used for long periods of time at temperatures above 1200°C and will not oxidize when heated to 1400°C in air. This is because a dense protective film of silica forms on the surface of silicon nitride, preventing further oxidation. For this reason, silicon nitride rods are often used as critical components in high-temperature furnaces, combustion chamber components and other high-temperature applications.

Question 4: What do I need to pay attention to when machining silicon nitride rods?
Answer: As a very hard and brittle ceramic material, silicon nitride rods require special attention during machining. First, because of its high hardness, conventional metal cutting tools cannot effectively machine silicon nitride rods, and diamond tools or grinding wheels are usually required. Second, because it is a brittle material, it is important to avoid applying excessive impact during machining to prevent the material from rupturing. Additionally, cooling during machining is very important; proper cooling reduces crack formation due to thermal stress. Finally, considering the high requirements for fine machining of silicon nitride rods, it is recommended that professional precision machining equipment be used and operated by experienced technicians.

Question 5: What is the coefficient of thermal expansion of silicon nitride rods and how does this affect their application?
Answer: Silicon nitride rods have a relatively low coefficient of thermal expansion of about 3.2 × 10^-6 /°C (over the range of room temperature to 1000°C). This characteristic has important implications for their applications. The low coefficient of thermal expansion means that silicon nitride rods are dimensionally stable over temperature changes and are less susceptible to deformation or internal stresses due to temperature fluctuations, which is especially important for applications where the operating temperature varies greatly or where high accuracy is required. For example, in areas such as aerospace and precision instrumentation manufacturing, this material ensures that parts maintain their geometric shape and functional integrity under varying temperature conditions, thereby improving system reliability and performance.
