Overview of Boron Nitride Ceramic Gasket
Boron nitride (BN) gaskets are specialized sealing elements that leverage the one-of-a-kind homes of boron nitride to give superior performance in demanding applications. These gaskets are typically made from hexagonal boron nitride (h-BN), which provides a mix of thermal security, electrical insulation, and chemical resistance.

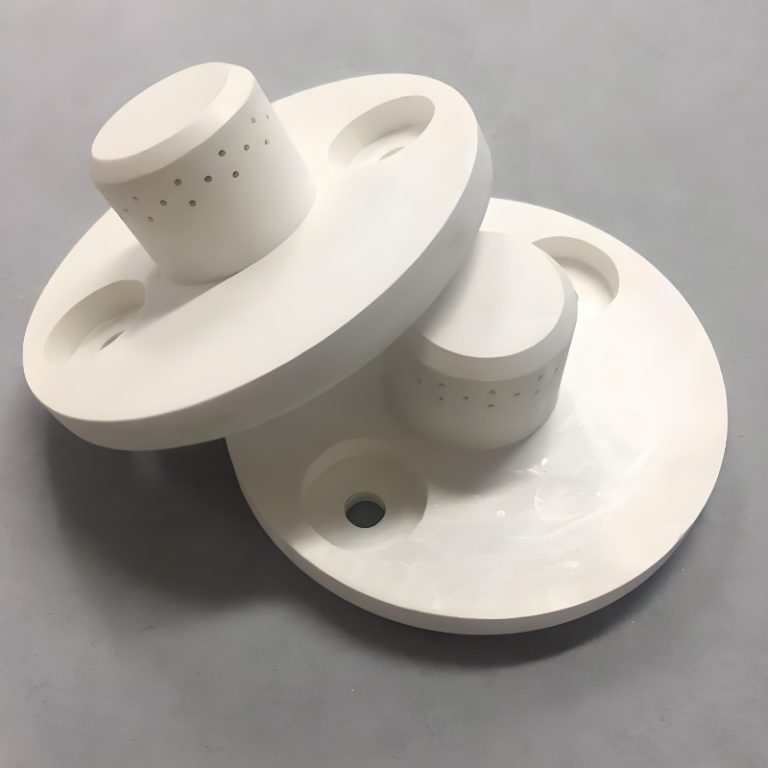

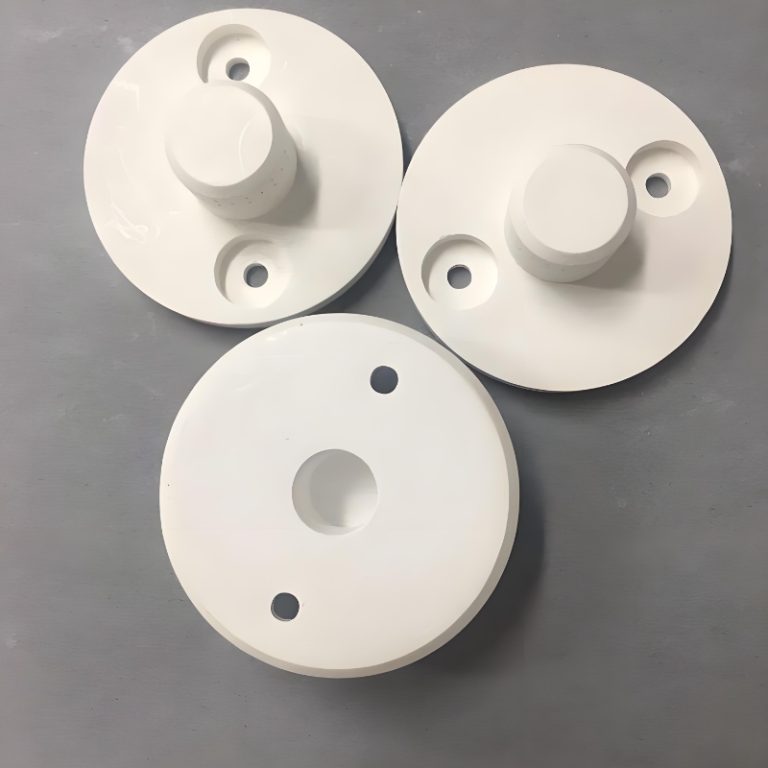

Boron Nitride Ceramic Gasket
Specifications of Boron Nitride Ceramic Gasket
|
Property |
Typical Value |
Unit |
Notes |
|
Material Type |
Hexagonal Boron Nitride (h-BN) |
|
Layered structure similar to graphite; most common form for gaskets |
|
Density |
2.27 |
g/cm³ |
For h-BN |
|
Hardness (Mohs Scale) |
~2 |
|
Relatively soft compared to c-BN |
|
Melting Point |
>3,000 |
°C |
High melting point ensures stability in high-temperature environments |
|
Thermal Conductivity |
60 – 300 |
W/m·K |
Along the basal plane for h-BN |
|
Coefficient of Thermal Expansion (CTE) |
2.5 – 4.5 |
×10⁻⁶/°C |
Low CTE minimizes thermal expansion and contraction |
|
Electrical Resistivity |
>10¹² |
Ω·cm |
Excellent electrical insulation |
|
Dielectric Strength |
10 – 20 |
kV/mm |
Good dielectric properties |
|
Chemical Stability |
Chemically inert |
|
Resistant to most chemicals, even at high temperatures |
|
Friction Coefficient |
0.1 – 0.2 |
|
Self-lubricating properties |
|
Porosity |
<1% |
|
Typically very low porosity for dense sintered products |
|
Flexural Strength |
200 – 400 |
MPa |
Depends on manufacturing process and material type |
|
Compressive Strength |
1,000 – 3,000 |
MPa |
High compressive strength suitable for mechanical applications |
|
Operating Temperature Range |
-269 to +1,000 |
°C |
Wide range from cryogenic to high temperatures |
|
Neutron Absorption Cross Section |
Moderate |
barns |
Beneficial for nuclear applications |
|
Bandgap Energy |
5.9 – 6.2 |
eV |
Wide bandgap makes it suitable for high-power electronic devices |
Features of Boron Nitride Ceramic Gasket
1. High thermal conductivity:
Very effective thermal conductivity: permits efficient thermal management in high temperature atmospheres.
2. Exceptional electric insulation:
Excellent electrical insulation for secure use in electrical systems.
3. Chemical Stability:
Resistant to many chemicals even at high temperatures, making sure resilience in corrosive environments.
4. Low Coefficient of Thermal Development:
The low coefficient of thermal expansion decreases the threat of breaking or contortion when temperature modifications and keeps dimensional security.
5. Mechanical Stamina:
High firmness and use resistance contribute to durable performance.
6. Self-lubricating residential properties:
The layered structure of hexagonal boron nitride gives natural lubrication and lowers friction between relocating components.
7. Safe and Chemically Inert:
Environmentally friendly and safe for managing and disposal.
8. Wide Operating Temperature Array:
It can operate properly from cryogenic temperature levels up to 1,000 ° C in air and higher in vacuum or inert ambiences.
Applications of Boron Nitride Ceramic Gasket
1. Heat Administration
Warmth exchangers: BN gaskets are used in heat exchangers where effective warmth transfer and chemical resistance are required. Their high thermal conductivity makes certain effective air conditioning while maintaining structural stability in corrosive environments.
Cooling Jackets: Perfect for cooling jackets for digital equipment and machinery, they offer thermal management and electrical insulation to safeguard delicate elements.
2. Electronic devices and Semiconductors
Substrates and Insulation: Important to substratums and insulation in semiconductor devices to ensure reliable procedure under high thermal lots.
Heat Sinks: Essential for handling warm in power electronics, CPUs, GPUs, and various other high-performance digital elements, BN gaskets enhance warm dissipation without compromising electrical insulation.
3. Automotive and Aerospace
Engine Components: Made use of in-engine components that are required to stand up to heat and destructive environments, BN gaskets help boost toughness and reliability and decrease maintenance demands.
Exhaust systems: For exhaust system parts due to their thermal security and chemical inertness. They can stand up to extreme temperatures and destructive gases, extending element life.
Power electronic devices: BN gaskets ensure safe and dependable operation under a wide range of conditions.
4. Production and Processing
High-temperature molds: For mold and mildew made use of in metal casting and various other producing processes that need high thermal stability and reduced coefficient of thermal growth (CTE), BN gaskets maintain dimensional precision even at heat.
Accuracy Elements: Utilized in precision design applications where dimensional stability and thermal performance are vital BN gaskets give a trusted securing service that will not deform or weaken over time.
5. Chemical Handling
Activator linings: In activators where products should hold up against both aggressive chemicals and heat, BN gaskets guarantee long-lasting longevity and security in extreme environments.
Warm exchangers: Used in industrial processes entailing high-temperature warm transfer to keep effective thermal performance and chemical resistance.
6. Metallurgy
Crucibles and refractory elements: BN gaskets are used in crucibles and other refractory components in metal melting and alloying procedures.
7. Energy Production
Atomic Power Plants: Parts in atomic power plants benefit from the neutron-absorbing buildings and thermal security of BN, which plays an important function in activator control and security. BN gaskets supply trustworthy seals in very radioactive settings.
Gas Cells: Used as gas diffusion layers and driver service providers, BN's heat buildings and chemical security are used to boost the effectiveness and durability of fuel cells.
8. Biomedical Applications
Medical Implants: Biocompatible coatings for implants or gadgets due to their non-reactivity and security; BN gaskets guarantee client security and gadget long life.
Medication Delivery Solutions: BN nanoparticles can be functionalized for targeted medication distribution by capitalizing on BN's biocompatibility and stability in organic tissues.
9. Research and Development
Advanced Products Growth: Research and development of new materials with application-specific properties to progress materials science and design.
Nanotechnology: Check out the distinct quantum residential properties of nanoelectronic and optoelectronic gadgets to advance innovation and innovation.
10. Ecological Applications
Catalyst Carriers: Offer secure systems for catalyst bits in a selection of chain reactions, especially high-temperature procedures, to advertise sustainable and efficient catalysis.
Electrocatalysis: Energy conversion and storage systems for electrochemical batteries to support eco-friendly technologies.
Company Profile
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Boron Nitride Ceramic Gasket, please feel free to contact us or click on the needed products to send an inquiry.
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
FAQs of Boron Nitride Ceramic Gasket
What are the main benefits of using a Boron Nitride Ceramic Gasket?
Boron Nitride Ceramic Gaskets offer superior thermal conductivity, excellent electrical insulation, high chemical resistance, and good mechanical strength. They are particularly useful in high-temperature applications where traditional materials might degrade or fail.
In which industries are Boron Nitride Ceramic Gaskets commonly used?
These gaskets find applications across various industries, including automotive, aerospace, electronics, semiconductor manufacturing, and chemical processing, where they provide reliable sealing solutions under extreme conditions.
How does Boron Nitride Ceramic compare to other materials for gaskets?
Compared to metallic or polymeric gaskets, Boron Nitride Ceramic can withstand higher temperatures without compromising its integrity. It also has better resistance to corrosive chemicals and offers non-conductive properties that are advantageous in certain applications.
Are there any limitations when using Boron Nitride Ceramic Gaskets?
While robust, Boron Nitride Ceramic Gaskets can be more brittle than some alternative materials, potentially requiring careful handling during installation. Additionally, they may have a higher initial cost due to the specialized manufacturing processes involved.
Can Boron Nitride Ceramic Gaskets be customized for specific applications?
Yes, many manufacturers offer customization options, such as different sizes, shapes, and even coatings to meet specific requirements or enhance performance characteristics for particular environments or uses.
