Spherical Alumina: The Power of Microscopic Spheres—From Structural Codes to Industrial Transformation
Views : 391
Author : Vincy
Update time : 2025-12-23 15:26:00
I. The "Perfect Sphere" in the Micro-World: Why Spherical Alumina is Different
On the microscopic stage of materials science, spherical alumina exists with its own sense of order. It does not show irregular edges or flakes like ordinary alumina, but is round and regular like carefully polished glass marbles. This unique spherical structure stems from its highly uniform particle size (usually between 0.1 and 100 microns) and the near-perfect smoothness of the surface, allowing it to be stacked like a closely arranged bowling ball, minimizing voids between particles. Compared with other forms of alumina, the advantages of the spherical structure are clear at a glance. Ordinary alumina is mostly irregular particles or flake crystals, which easily form a large number of "dead spots" when piled up, resulting in low bulk density (about 1.5 to 2.0 grams per cubic centimeter) and poor liquidity, like a pile of randomly *tered gravel. The bulk density of spherical alumina can reach 2.0 to 2.5 grams per cubic centimeter, which is close to the theoretical maximum. At the same time, the low friction coefficient brought by the smooth surface makes it like a steel ball with lubricating oil, which is not easy to gather during processing. Or scratch equipment. More importantly, the spherical structure gives it isotropic mechanical properties-no matter which direction the force is applied, the stress can be uniformly dispersed, avoiding fluctuations in the performance of the flake alumina due to different orientations. This "round power" makes spherical alumina stand out in the field of high-performance materials.

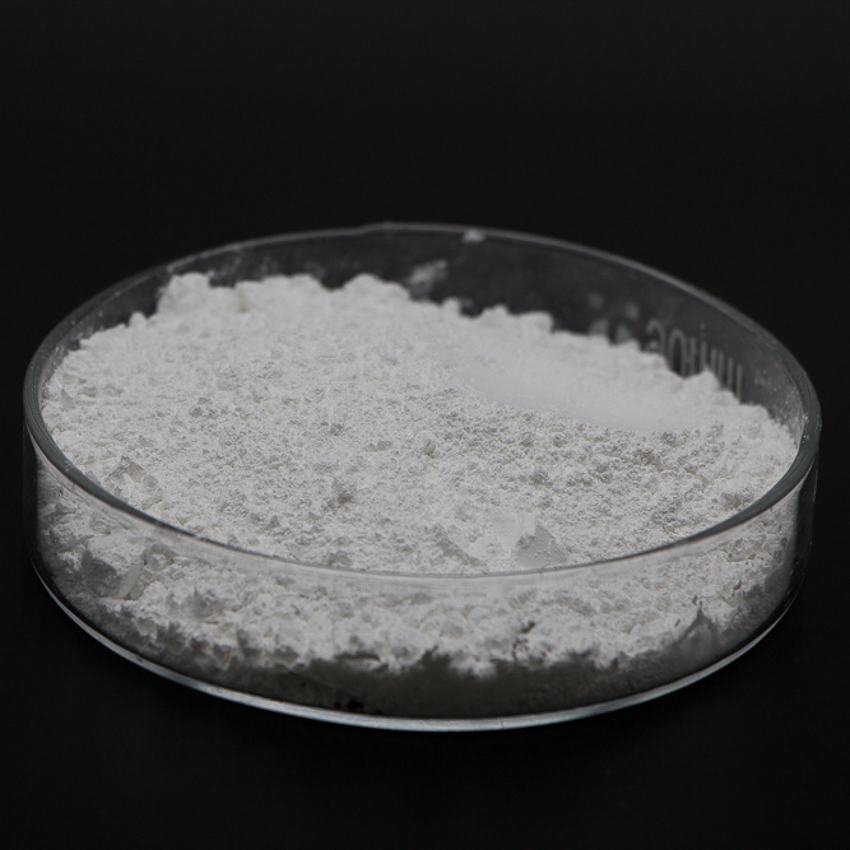

Spherical alumina
II. From Powder to Sphere: The Manufacturing Code of Spherical Alumina
"Squeezing" ordinary alumina powder into a perfect sphere is a "shaping art" in the microscopic world. The current mainstream manufacturing process revolves around "how to control the particle shape. The core is to use physical or chemical means to make the alumina precursor naturally tend to be spherical during the growth process. The hydrothermal method is one of the most "delicate" processes. An aluminum salt (such as aluminum nitrate) is dissolved in water, a mineralizer (such as sodium hydroxide) is added to form an aluminum hydroxide colloid, and then the colloid is placed in a reaction kettle at high temperature and high pressure. At high temperatures, the hydroxyl groups (-OH) on the surface of colloidal particles undergo dehydration and condensation, and through the Oswald maturation effect (small particles dissolve and large particles grow), a spherical crystal core is gradually formed. This method can accurately control the particle size (error is less than 5%) and sphericity (close to 1.0), but the reaction conditions are harsh (the temperature often exceeds 200 degrees Celsius, and the pressure is tens of megapascals), the cost is high, and it is mostly used for electronic-grade high-end products. The law of spray drying is like "microscopic inkjet printing". The aluminum salt solution is atomized into micron droplets and sprayed into a hot air stove for rapid drying. When the water in the droplet evaporates, the solute (alumina precursor) shrinks into balls due to surface tension, eventually forming hollow or solid microspheres. This method has a large yield (hundreds of kilograms per hour) and low cost, but has a wide particle size distribution (usually 10 to 50 microns) and is suitable for industrial-grade applications where sphericity is not high, such as ceramic body reinforcement. The molten salt method takes a different approach, using low-melting salts (such as sodium chloride and potassium chloride) as the reaction medium. Alumina powder is mixed with salt and heated to 800 to 1000 degrees Celsius. The salt melts to form a liquid phase environment, and the alumina particles gradually become rounded under the action of surface tension and the flow of the molten salt. After cooling, wash off the salt with water to obtain spherical alumina. This method can process coarse raw materials and is suitable for preparing large size microspheres (50 to 200 microns). However, salt residues may affect purity and require additional purification steps. In recent years, plasma spheroidization technology has emerged. Irregular alumina powder is sent into a plasma torch (at a temperature exceeding 10,000 degrees Celsius). The powder is instantly melted into droplets, which naturally shrink into balls under the action of surface tension, and form microspheres with high sphericity after cooling. This method can process a variety of raw materials (including recycled alumina waste) and has high product purity, and is regarded as a potential direction for green manufacturing. No matter which process, the core is to "let microscopic particles learn to 'self-round'"-just like water droplets forming balls in nature, the essence of manufacturing spherical alumina is to simulate and strengthen this process.
III. Cross-Border Empowerment: How Spherical Alumina is Reshaping Industrial Landscapes
Leveraging its "smooth and efficient" properties, Spherical Alumina has moved from the laboratory to the industrial front lines, playing the role of an "invisible optimizer" in multiple fields. In ceramic matrix composites, spherical alumina is a "toughness enhancer". Ordinary ceramics (such as alumina ceramics) have high hardness but high brittleness and are easy to crack. After adding 20% to 30% spherical alumina microspheres, the microspheres form a "stress buffer zone" in the ceramic matrix. When the material is impacted, the microspheres absorb energy through elastic deformation and prevent crack propagation. This "ball toughening" effect increases the bending strength of the ceramic by more than 30%, while maintaining high temperature resistance (no deformation at 1600 degrees Celsius) and corrosion resistance. The high-temperature sensor housing of aeroengines is made of this composite material and can work stably for a long time in extreme environments. In the field of catalyst carriers, spherical alumina embodies an "efficient reaction bed". The performance of the catalyst depends on the dispersion of active components (such as platinum and palladium) and the specific surface area of the support. Spherical alumina has a smooth surface and uniform pore size (mostly mesoporous, 2 to 50 nanometers), which allows the active components to be uniformly loaded and avoids agglomeration and deactivation. Compared with honeycomb carriers (such as cordierite), the catalyst bed filled with spherical particles has a lower pressure drop and a lower fluid resistance, just like filling pipes with balls is smoother than using squares. After the hydrodesulfurization unit of a refinery used spherical alumina carriers, the service life of the catalyst was doubled, and the desulfurization efficiency was increased by 15%. In the grinding media industry, spherical alumina is the "gentle hand of precision machining." Traditional grinding beads (such as silicon carbide) can easily scratch the surface of the workpiece during the grinding process due to their sharp edges and corners. Spherical alumina has a smooth surface and moderate hardness (Mohs hardness 9, second only to diamond), which can not only efficiently crush materials, but also ensure the surface smoothness of the workpiece. In optical glass polishing, the abrasive liquid made from it can control the surface roughness to the nanometer level, far exceeding ordinary abrasive media.
IV. Challenges and Evolution: The Future Path of Spherical Alumina
Despite its widespread use, spherical alumina still faces "growth troubles." The primary challenge is "balancing performance and cost": high-end electronic-grade products (such as chip packaging fillers) rely on hydrothermal methods, costing as high as tens of thousands of yuan per ton; while industrial-grade products (such as ceramic reinforcements) use spray drying methods, which cost Although low, but insufficient sphericity. How to bring "high-end performance" to the "mass market" is a bottleneck that the industry needs to break through urgently. Another challenge is "functional simplification. At present, spherical alumina is mainly used as a structural filler or carrier, and the exploration of surface modification is still in its infancy. For example, modification of the surface by a silane coupling agent can enhance the binding force with the polymer; after loading magnetic nanoparticles, magnetically responsive microspheres can be made for targeted drug delivery. However, these "multifunction" attempts have not yet been applied on a large scale. In the future, the evolution of spherical alumina will unfold in three directions. The first is "intelligent manufacturing": AI algorithms are used to regulate hydrothermal reaction parameters in real time to achieve dynamic optimization of particle size and sphericity, reduce costs and improve consistency. The second is "green upgrading": develop salt-free molten salt method, low-temperature plasma spheroidization and other technologies to reduce wastewater and exhaust emissions and make the production process more environmentally friendly. The third is "cross-border integration": compounding with nanomaterials such as carbon nanotubes and graphene to prepare new composite materials that are "flexible and flexible" for use in cutting-edge fields such as flexible electronics and wearable devices.
Spherical alumina
At the new energy track, the potential of spherical alumina is emerging. As a lithium battery separator coating, it can improve the heat resistance of the separator (decomposition temperature rises from 130 degrees Celsius to 300 degrees Celsius) and prevent thermal runaway; as a solid electrolyte filler, its spherical structure can reduce ion transmission resistance and improve battery charging and discharging speed. There are even studies trying to use spherical alumina for hydrogen energy storage and transportation, using its high specific surface area to adsorb hydrogen, which is expected to solve the hydrogen storage problem.
Conclusion
From microscopic balls to industrial transformation, the story of spherical alumina confirms one truth: the value of materials is often hidden in the most basic form. It has no gorgeous colors, but it rewrites the performance boundary with "round" wisdom; it may seem ordinary, but it silently supports the precise operation of modern industries in the fields of electronics, energy, manufacturing, etc. With the iteration of manufacturing technology and the deepening of functional exploration, this "microscopic marble" may unlock more unknown possibilities-perhaps one day in the future, the folding-screen mobile phones in our hands, the new energy vehicles we ride, and even exploring space The detector is inseparable from its silent contribution. The journey of spherical alumina has just begun.
