For the past decade, scientists and engineers have been studying a ferroelectric material called hafnium oxide for potential applications in next-generation computing memories. A study published in the Proceedings of the National Academy of Sciences describes a new method that could advance progress in the large-scale production of ferroelectric and antiferroelectric hafnium oxide.
In certain crystal phases, hafnium oxide exhibits ferroelectric properties, i.e., its electrical polarization direction can be changed by applying an external electric field. This property makes ferroelectric memory potentially useful in data storage technology because it is non-volatile, and data is retained even when power is removed. However, hafnium oxide does not possess ferroelectric properties in its ground state, and scientists could only achieve a metastable ferroelectric state by stretching it as a nanometer-thick film. Recently, important progress has been made in this research. Scientists have successfully maintained hafnium oxide in a metastable ferroelectric state through alloying and rapid cooling. However, this method requires large amounts of yttrium as a stabilizer and introduces some impurities and disorders. Therefore, researchers are looking for ways to reduce the amount of yttrium used to improve the material's properties.
In new research, scientists have discovered that large-scale ferroelectric and antiferroelectric hafnium oxide morphologies can be stabilized by applying tremendous pressure. They performed high-pressure experiments and demonstrated that the material could remain in a metastable state at the predicted pressures. This method requires only about half the yttrium as a stabilizer, improving the quality and purity of the hafnium oxide crystals. While hafnium oxide's breakthrough potential has attracted the attention of memory manufacturers, material cost remains a limiting factor. Currently, the price of hafnium has increased nearly fivefold, leading to a supply shortage. However, scientists are still trying to find ways to reduce costs to achieve large-scale production of ferroelectric hafnium oxide.

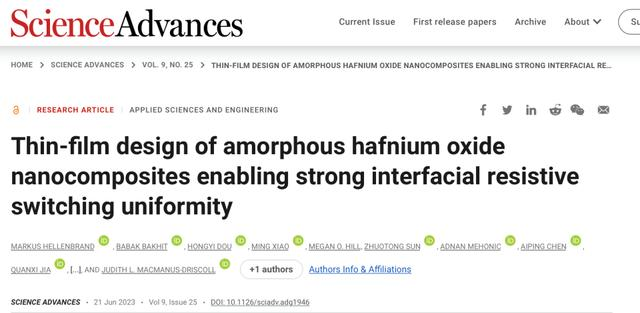

Cambridge University develops new semiconductor memory technology using hafnium oxide.
The evolution of digital storage technology is a testament to the constant pace of technological advancement and the ongoing pursuit of efficiency. Over the years, we have witnessed the development of various multi-level cell (MLC) memory technologies. These technologies, such as NAND, Phase Change Memory (PCM), 3D XPoint, Magnetic RAM (MRAM), and Resistive RAM (ReRAM), all offer unique features and capabilities that can be used in specific applications. However, researchers at the University of Cambridge have recently achieved a breakthrough using hafnium oxide, a material that could revolutionize the field of digital storage.
Traditional computing models separate memory and processing into two separate entities, a design that requires constant data exchange between the two, resulting in energy and time inefficiencies. As our world becomes increasingly data-hungry, this model is proving to be a stumbling block in the quest for energy-efficient computing.
This inefficiency has led to the exploration of resistive switching memory technology. New technology from the University of Cambridge proposes a solution that allows memory devices to maintain a continuous range of states rather than just binary states and zeros. This technology increases the density and speed of storage devices and is expected to allow USB flash drives to store 10 to 100 times the information.

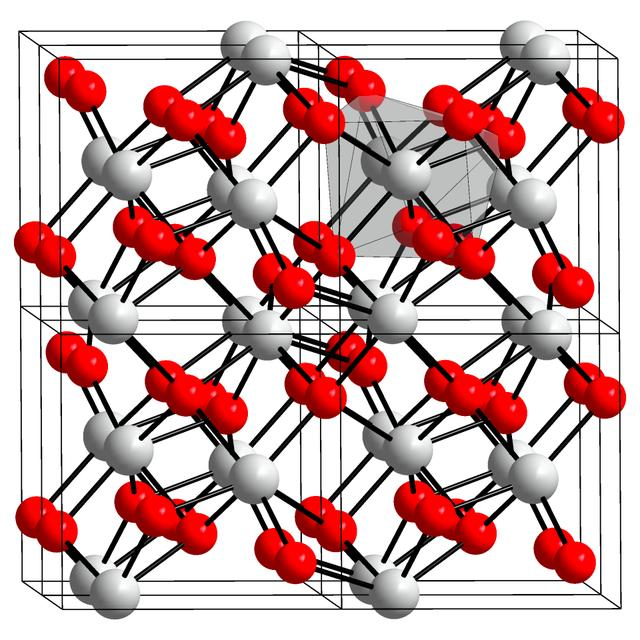

Research at the University of Cambridge is groundbreaking, with researchers developing a memory device based on hafnium oxide, an insulating material widely used in the semiconductor industry. The main challenge with hafnium oxide is its atomic structure, in which hafnium and oxygen atoms are randomly mixed, making it unsuitable for memory applications due to a lack of uniformity. However, by adding barium to the hafnium oxide film, the researchers created a composite material with a structure that allows electrons to pass through, creating an energy barrier that can be raised or lowered to change the material's resistance, allowing multiple states to exist within it.
The innovation of this research lies in the way these hafnium oxide composites self-assemble at low temperatures, exhibiting high performance and uniformity. This property makes the material promising for next-generation memory applications, given its compatibility with existing manufacturing processes in the semiconductor industry.
In a broader sense, this innovation is more than a simple improvement in-memory technology. The working principle of devices based on hafnium oxide is similar to the synapses in the human brain. They can store and process information at the same location, integrating storage and calculation, which is very exciting. This similarity to biological processes opens up exciting possibilities for applications in the rapidly growing fields of artificial intelligence and machine learning.
