Overview of Aerogel Thermo Insulating Film
TR-P Series Aerogel Thermal Insulation Film is a thin-film nano-insulation material prepared by utilizing a fine coating process on a variety of functional substrates based on aqueous slurry. It aims to solve the thermal management problems such as heat homogenization and heat dissipation of precision industrial products in a small space. The substrate can be customized according to user needs, and it provides excellent thermal protection for weak heat-resistant components, enhances the comfort of electronic products and prolongs the service life of electronic products.

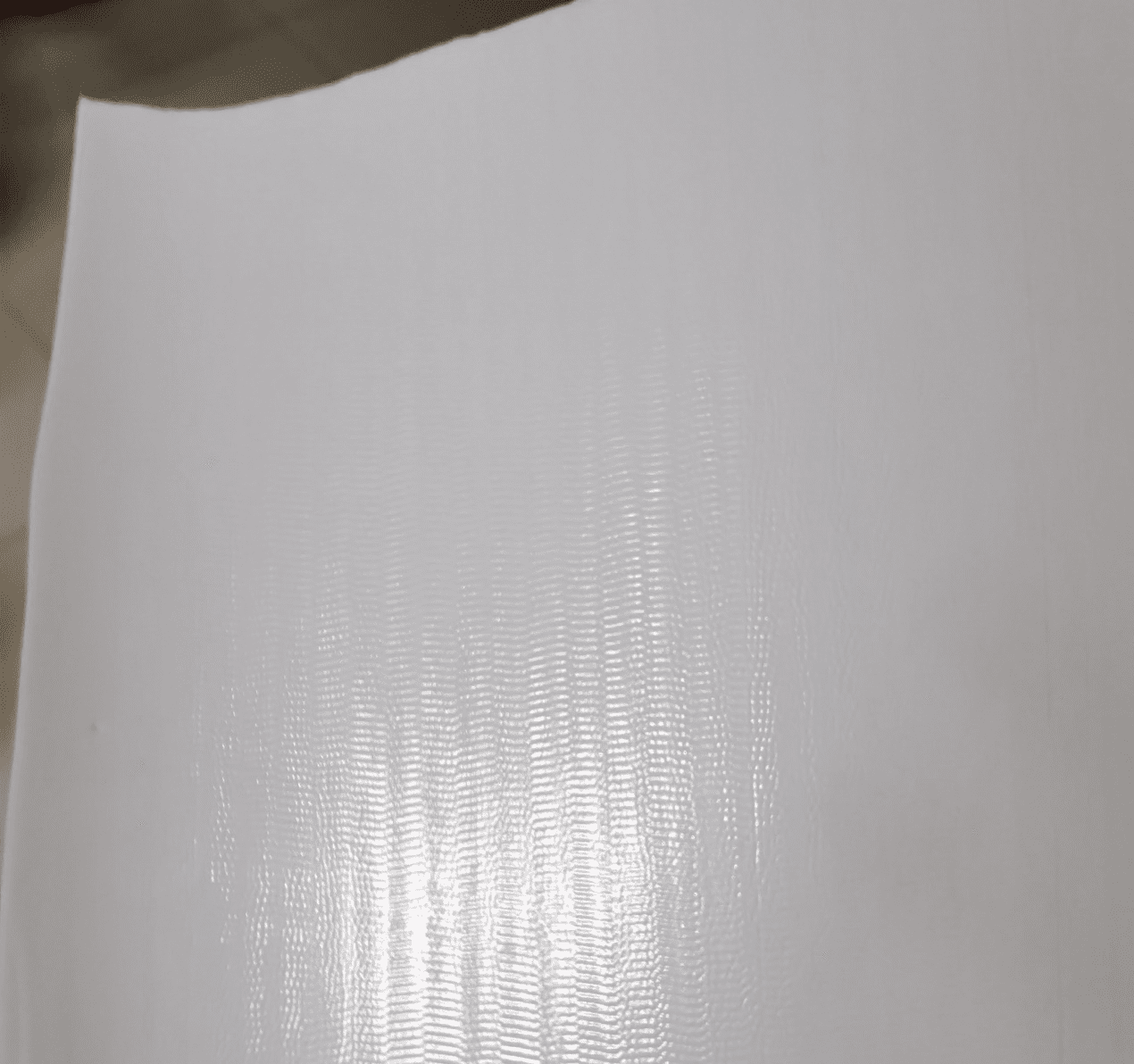

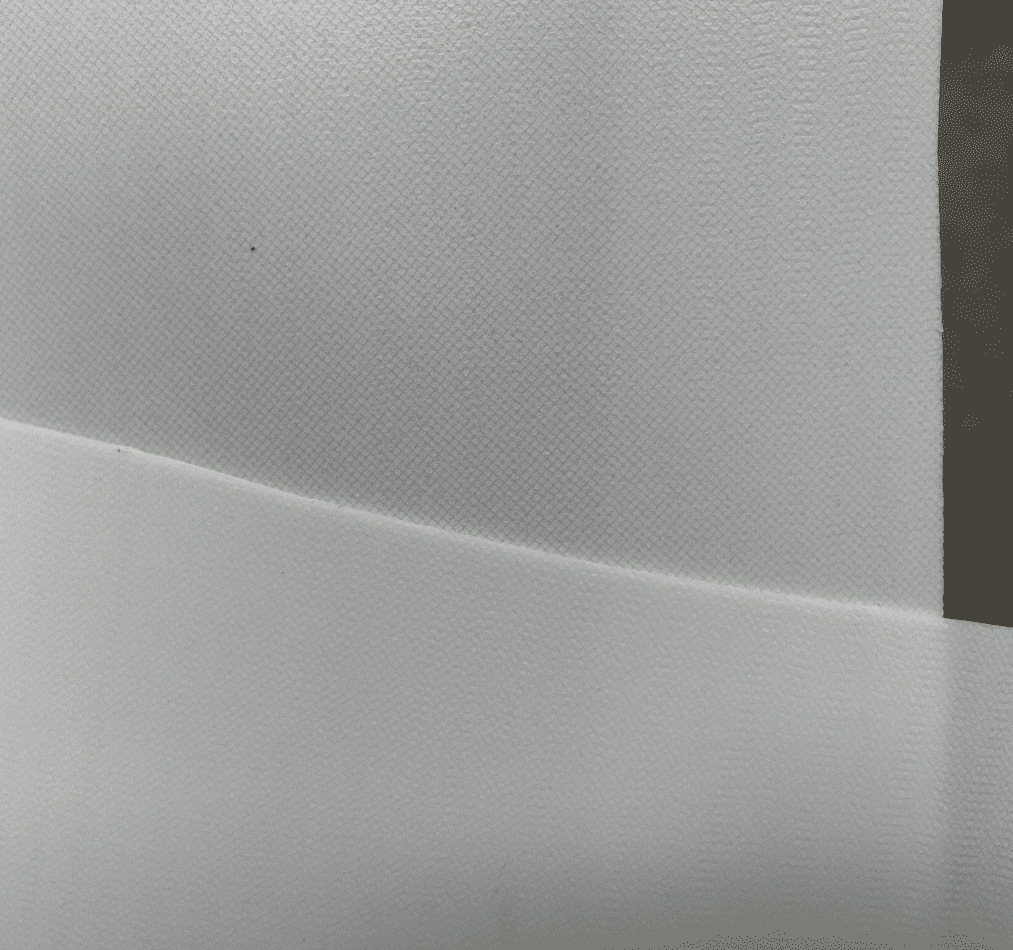

Aerogel Thermo Insulating Film
Features of Aerogel Thermo Insulating Film
Low thermal conductivity
Customized thickness
Excellent insulation properties
Easy die-cutting
Specifications Table of Aerogel Thermo Insulating Film
| Product Model | TR-P |
| Thermal Conductivity | 0.018~0.025 W/(m·K) |
| Operating Temperature | -20°C to 120°C |
| Thickness | 0.15-0.5 mm |
| Thickness Tolerance | ±5% |
| Product Width | 500 mm or Customized |
| Dielectric Strength | ≥4 kV/mm |
| Volume Resistivity | ≥1.0×1013 Ω·cm |
| Storage Conditions | Sealed and Stored in a Cool, Dry Place |
| Product Type | White Roll Material |
| Prohibited Substances | Compliant with REACH/RoHS Testing |
Applications of Aerogel Thermo Insulating Film
Smartphone
Tablet
Laptop
Anvil Watch
Liquid Crystal Display
Projectors
Smart Wearable Gear
Other electronic devices for tight spaces
Company Profile
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and Nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.
The company has a professional technical department and quality supervision department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you want to know more about the Aerogel Thermo Insulating Film, please feel free to contact us or click on the needed products to send an inquiry.
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
5 FAQs of Aerogel Thermo Insulating Film
Q1
What is aerogel thermo insulating film used for?
It is used in buildings, industrial equipment, automotive parts, aerospace, and consumer products.
Q2
How does this film work?
It reduces heat transfer by trapping air in its structure.
Q3
Is the film easy to install?
Yes, it is lightweight and flexible, making installation simple.
Q4
Can the film be cut to size?
Yes, it can be cut with standard tools to fit any shape or size.
Q5
Where can I buy aerogel thermo insulating film?
It can be purchased from suppliers of insulation materials and online stores.
