Overview of Aerogel Insulation Sponge
TR-S series aerogel insulation wool series products, is a with low density, low thermal conductivity of the flexible thermal insulation material, formed by the hydrophobic silica aerogel combined with the substrate, is very suitable for narrow space insulation needs, can be in the complex surface of the flexible mounting.

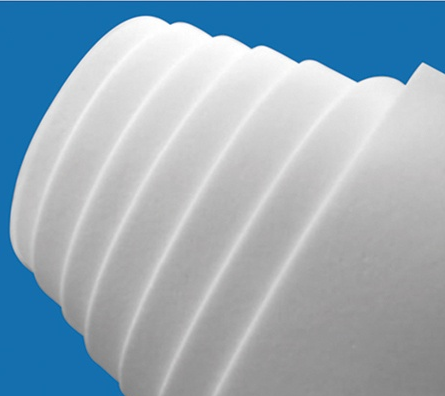

Aerogel Insulation Sponge
Features of Aerogel Insulation Sponge
Flexible filament
Low thermal conductivity
Easy to cut
Wide range of applications
Specifications Table of Aerogel Insulation Sponge
|
Product Model |
TR-S |
|
Product Thickness |
0.6-4 mm |
|
Product Tolerance |
0.2-0.5 mm (Tolerance increases with thickness) |
|
Product Width |
1200 mm |
|
Appearance |
White Roll Material |
|
Thermal Conductivity (25°C) |
0.012~0.018 W/(m·K) |
|
Product Density |
100 ± 30 kg/m³ |
|
Operating Range |
-50~230°C |
|
Surface Property |
Hydrophobic |
|
Flame Retardancy |
UL94-V0 |
|
Dielectric Strength |
>4 kV/mm |

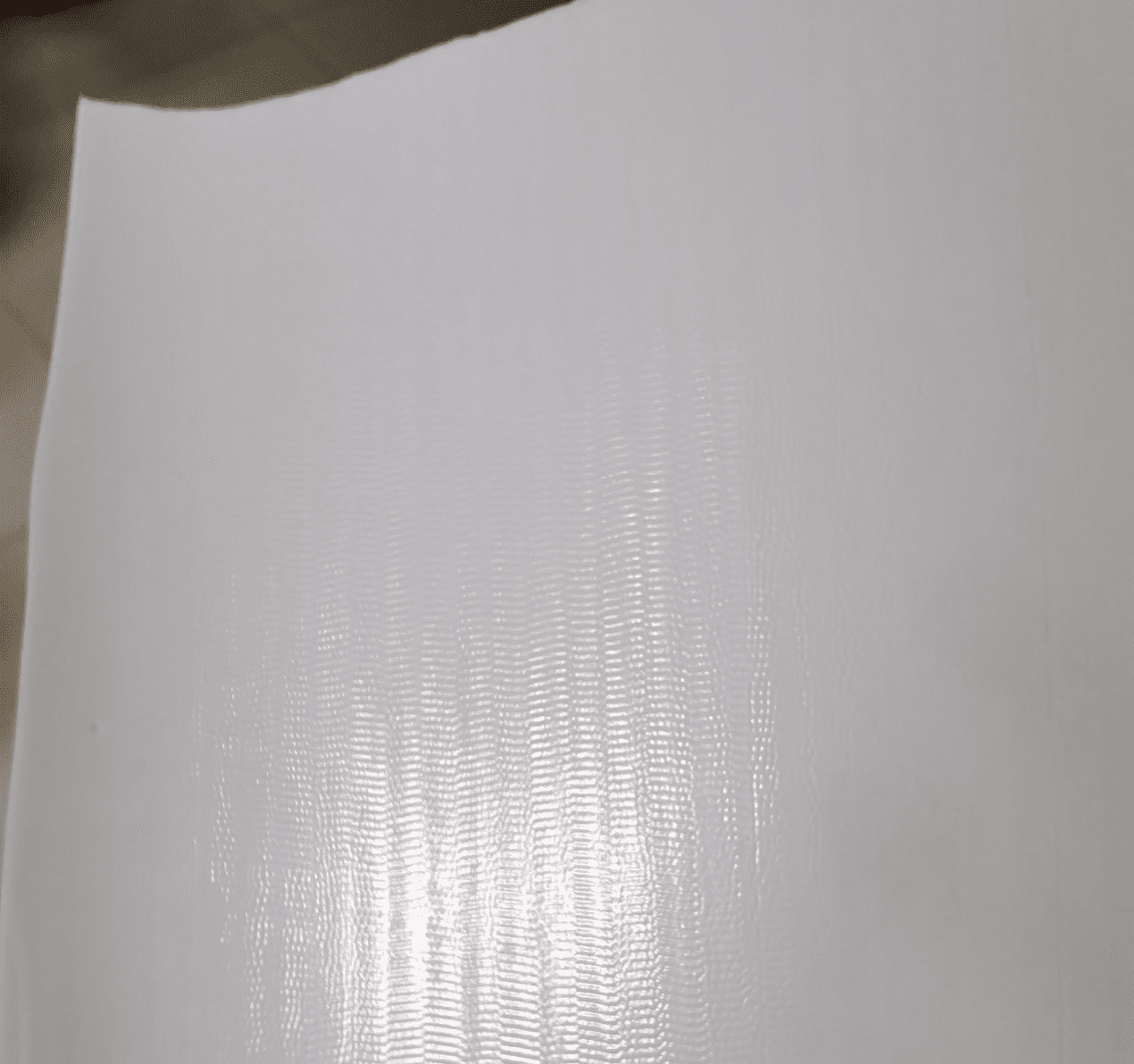

Aerogel Insulation Sponge
Applications of Aerogel Insulation Sponge
Thermal insulation for consumer electronics
Home Appliances
New energy heat insulation
More heat insulation, thermal insulation, fire prevention applications are being developed.
Company Profile
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and Nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.
The company has a professional technical department and quality supervision department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you want to know more about the Aerogel Insulation Sponge, please feel free to contact us or click on the needed products to send an inquiry.
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
5 FAQs of Aerogel Insulation Sponge
Q1
What is aerogel insulation sponge used for?
Aerogel insulation sponge is used in various applications where thermal insulation is needed. This includes building insulation, industrial equipment protection, automotive parts, aerospace components, and consumer products like clothing and footwear.
Q2
How does this sponge work?
The aerogel insulation sponge works by trapping air within its structure. This trapped air reduces heat transfer, providing excellent insulation against both heat and cold.
Q3
Is the sponge easy to install?
Yes, it is lightweight and flexible, making installation straightforward. It can be cut with standard tools to fit any shape or size, which simplifies the process.
Q4
Can the sponge be cut to size?
Absolutely. The material can be easily cut with scissors or a knife to match specific dimensions. This makes it versatile for different projects and applications.
