Aluminum Nitride Ceramic Tubes Overview
Aluminum Nitride (AlN) ceramic tubes are advanced ceramic components that utilize the unique properties of Aluminum Nitride for a variety of high performance applications. Not only are these ceramic tubes able to withstand extreme environmental conditions, but they also excel in thermal management, electrical insulation, and mechanical stability, making them ideal for use in a number of demanding applications.

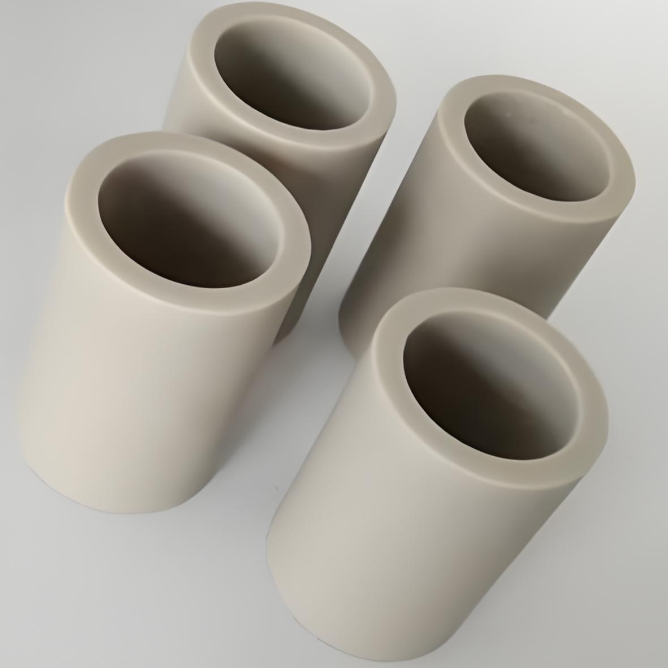

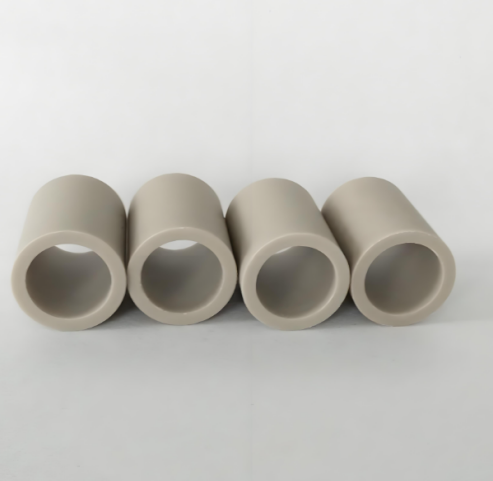

Aluminum Nitride Ceramic Tubes
Features of Aluminum Nitride Ceramic Tubes
Excellent Thermal Conductivity: Aluminum nitride ceramic tubes have a thermal conductivity range of 170 to 220 W/m-K, allowing them to excel in high-efficiency heat dissipation applications. This characteristic is critical to maintaining optimal operating temperatures for high-power devices, ensuring system stability and efficiency.
Strong Electrical Insulation: Despite their extremely high thermal conductivity, these ceramic tubes maintain excellent electrical insulation properties, providing superior dielectric strength. This makes them ideally suited for electronic packaging and semiconductor applications, especially where strict electrical isolation is required.
Low Coefficient of Thermal Expansion (CTE): Aluminum nitride ceramic tubes have a CTE similar to that of silicon (approximately 4.5-5.0 ppm/°C), which helps to minimize thermal mismatch stresses due to temperature variations, resulting in improved device reliability and long-term performance stability in fluctuating temperature environments.
Chemical Durability: These tubes have excellent chemical resistance to molten metals, acids and bases, maintaining structural integrity and long-lasting durability even in corrosive environments.
Mechanical Strength: Although aluminum nitride ceramic tubes are brittle materials, they are hard and strong enough for most industrial applications. They can withstand significant mechanical loads as long as they are handled properly and shock or overstress is avoided.
Specifications of Aluminum Nitride Ceramic Tubes
| Property | Typical Specification |
| Material Composition | AlN (Aluminum Nitride) |
| Thermal Conductivity | 170-220 W/m·K |
| Coefficient of Thermal Expansion | ~4.5-5.0 ppm/°C (similar to silicon) |
| Dielectric Strength | >20 kV/mm |
| Dielectric Constant (1 MHz) | ~8.4 – 9.6 |
| Volume Resistivity | >10^14 Ω·cm at 25°C |
| Mechanical Strength (Bending) | ~350-450 MPa |
| Hardness (Vickers) | ~12-14 GPa |
| Density | ~3.26 g/cm³ |
| Porosity | <1% |
| Operating Temperature Range | -269°C to +1000°C |
| Chemical Stability | Excellent resistance to acids, alkalis, and molten metals |
| Surface Finish | Can be polished to optical quality or left with a machined finish |
| Inner Diameter (ID) | Customizable; typically ranges from a few millimeters to several centimeters |
| Outer Diameter (OD) | Customizable; typically ranges from a few millimeters to several centimeters |
| Length | Customizable; commonly available in lengths up to several meters |
| Purity | High purity options available (e.g., >99%) |
Applications for Aluminum Nitride Ceramic Tubes
High temperature environments
Furnaces and kilns: As structural members, supports or seals in furnaces and kilns, aluminum nitride ceramic tubes are able to last in extreme temperatures and corrosive conditions thanks to their thermal stability and chemical resistance.
Metallurgical processes: In processes involving molten metals, these ceramic tubes are particularly important due to their chemical resistance to molten materials.
Optoelectronics
Optical windows and lenses: Aluminum nitride ceramic tubes exhibit transparency and thermal stability at specific wavelengths, making them ideal for the manufacture of optoelectronic devices such as optical windows and lenses.
Laser Technology
Laser Components: As a substrate or component in a laser system, aluminum nitride ceramic tubes utilize their thermal conductivity and mechanical strength to ensure reliable system operation.
Aerospace & Defense
Avionics and spacecraft components: For avionics and spacecraft components, the reliable performance of aluminum nitride ceramic tubes is particularly critical under extreme conditions.
Radar Systems: Due to their electromagnetic compatibility and thermal stability, aluminum nitride ceramic tubes are also widely used in radar systems to enhance signal integrity and overall system reliability.
Company Profile
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Aluminum Nitride Ceramic Tubes please feel free to contact us or click on the needed products to send an inquiry.
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
FAQs of Ceramic Products
Q1: What is the thermal conductivity of aluminum nitride ceramic tubes?
A1: Aluminum nitride (AlN) ceramic tubes are known for their excellent thermal conductivity, which ranges from 170 to 220 W/m-K. This characteristic makes them effective in applications that require efficient heat dissipation, such as high-power electronic devices and semiconductor packages. Aluminum nitride's thermal conductivity is closer to that of metals than that of other ceramic materials, allowing it to conduct and dissipate heat quickly, ensuring stable operation at high temperatures, thus extending service life and improving reliability.
Q2: Are Aluminum Nitride ceramic tubes suitable for electronic applications?
A2: Yes, aluminum nitride ceramic tubes are well suited for electronic applications. Not only do they have excellent thermal conductivity, but they also have excellent electrical insulation and a low coefficient of thermal expansion (CTE), which is similar to that of silicon and reduces the stress caused by temperature changes. These properties make them ideal for electronic packaging, semiconductor devices and high frequency circuits. In addition, their chemical stability ensures that long-term use in corrosive environments will not compromise electrical performance or structural integrity.
Q3: Can Aluminum Nitride Ceramic Tubes withstand high temperature environments?
A3: Aluminum nitride ceramic tubes are capable of maintaining stable performance in extreme high temperature environments. The material itself is thermally stable and chemically resistant, and can withstand temperatures up to 1,600°C or more without decomposing or losing functionality. For this reason, they are widely used in furnaces, kilns and metallurgical processes involving molten metals. Aluminum nitride ceramic tubes maintain structural integrity and operating efficiency even under sustained high temperatures and corrosive conditions, making them a reliable choice for high-temperature industrial applications.
Q4: What is the price of Aluminum Nitride Ceramic Tubes?
A4: Aluminum nitride ceramic tubes are typically more expensive than traditional ceramic materials, primarily due to the complexity of the manufacturing process and the higher cost of raw materials. The exact price depends on a number of factors, including size, shape, purity requirements, and whether custom processing is required. Despite the larger initial investment, many high-end applications prefer this high-performance material given the long-term economic benefits of its excellent properties, such as efficient thermal management and long life. When purchasing, it is recommended to evaluate the price/performance ratio based on actual needs.
Q5: How do I handle aluminum nitride ceramic tubes to avoid damage?
A5: Although aluminum nitride ceramic tubes are hard and have good strength, they are a brittle material and are prone to breakage due to improper handling. To prevent damage, care should be taken during handling and installation: avoid dropping them or subjecting them to shocks; do not apply excessive pressure or bending force; and for precision parts, soft tools are recommended for handling. In addition, storage should be on a flat, stable area and stacking heights should be minimized to reduce potential risks. Following proper handling guidelines can significantly extend product life..
