Silicon Nitride Ceramic Standard Parts: An Overview
Silicon Nitride Ceramic Standard Parts, composed primarily of silicon nitride with specific specifications and performance attributes, are distinguished by their high strength, high hardness, high-temperature resistance, abrasion resistance, and oxidation resistance. These parts maintain stable performance in harsh environments and offer high dimensional accuracy and consistency. They are widely used in machinery manufacturing, aerospace, electronics, and the chemical industry for manufacturing key components such as bearings, cutting tools, turbine blades, and seals.

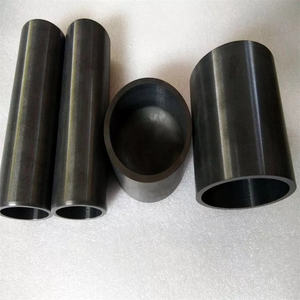

Silicon Nitride Ceramic Standard Parts
Features of Silicon Nitride Ceramic Standard Parts
High Hardness and Strength: These parts are extremely hard, second only to diamond and a few other materials. They have a compressive strength of 700-1000 MPa and a Rockwell hardness between HRA80-90. This enables them to withstand significant pressure and impact without deformation or damage, making them suitable for high-load mechanical components.
Excellent Wear Resistance: Silicon nitride ceramic standard parts have excellent wear resistance and can effectively resist friction and wear. In the high-speed, high-load friction environment, its wear rate is extremely low, which can significantly improve the service life and reliability of the equipment often used in the manufacture of parts with high wear requirements, such as ceramic bearings, ceramic cutting tools and so on.
High-temperature resistance: Silicon nitride ceramic standard parts have excellent high-temperature resistance and can still maintain good mechanical properties and chemical stability in a high-temperature environment. Its melting point is as high as 1900℃, and it can be used for a long time at a high temperature of 1200 - 1300℃, which is suitable for aerospace, metallurgy and other high-temperature fields.
Good Chemical Stability: They exhibit excellent resistance to corrosion from acids, alkalis, salts, and other chemicals. This makes them suitable for corrosive environments in the chemical and electronic industries.
Low Coefficient of Thermal Expansion: With a low thermal expansion coefficient of approximately 2.5-3.0×10⁻⁶/°C, these parts maintain dimensional stability in varying temperature conditions, reducing deformation and cracking caused by thermal expansion and contraction, thereby improving part precision and reliability.
Specifications of Silicon Nitride Ceramic Standard Parts
| Property |
Unit |
Value |
| Density |
g/cm³ |
3.2 |
| Porosity |
- |
<5% |
| Hardness (HV) |
GPa |
18 |
| Flexural Strength |
MPa |
800 - 1200 |
| Modulus of Elasticity (Young's Modulus) |
GPa |
320 |
| Poisson's Ratio |
- |
0.25 |
| Fracture Toughness, KIC |
MPa·m¹/² |
6.0 - 8.0 |
| Max. Use Temperature (Air) |
℃ |
1200 |
| Max. Use Temperature (Inert Gas) |
℃ |
1500 |
| Thermal Conductivity |
W/(m·K) |
20 |
| Coefficient of Thermal Expansion |
10⁻⁶/K |
3.1 |
| Resistivity |
ω·cm |
>10¹⁴ |
|
Applications of Silicon Nitride Ceramic Standard Parts
Silicon Nitride Ceramic Standard Parts find extensive applications across various fields due to their outstanding performance:
Machinery Manufacturing: Used to manufacture high-precision bearing balls and bushings. Their high hardness, wear resistance, and low friction coefficient ensure stable bearing performance under high-speed and high-load conditions, extending equipment life and improving mechanical efficiency. Silicon nitride ceramic cutting tools offer superior performance, sharpness, and durability for high-speed cutting, enhancing machining accuracy and surface quality.
Aerospace Field: Used in aviation engine turbine blades and combustion chamber components. Their high-temperature resistance, high strength, and low density allow them to withstand extreme engine conditions while reducing engine weight, improving fuel efficiency, and enhancing aircraft performance and range.
Electronics Industry: As integrated circuit packaging materials, silicon nitride ceramics provide excellent electrical insulation, thermal stability, and chemical stability, protecting chips from environmental influences and improving electronic equipment reliability. They are also used in insulating parts of high-frequency, high-voltage electronic components.
Energy Field: In fuel cells, they serve as electrolyte or electrode support materials, improving fuel cell performance and durability with their ionic conductivity and chemical stability. In high-temperature gas-cooled nuclear reactors, they are used for core components that can withstand high temperatures and radiation.
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Ceramic Products please feel free to contact us or click on the needed products to send an inquiry.
Applications of Ceramic Products
Process of Ceramic Products
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
5 FAQs About Silicon Nitride Ceramic Standard Parts
Q1: What are the core advantages of silicon nitride ceramic standard parts?
Silicon nitride ceramic standard parts offer high strength (flexural strength 600-800 MPa), high hardness (Vickers hardness 15-16 GPa), high-temperature resistance (long-term use temperature 1200-1300°C), wear resistance (friction coefficient 0.1-0.2), and excellent chemical stability (resistance to acid and alkali corrosion). With a density only one-third that of steel, they also feature a low expansion coefficient (2.5-3.0×10⁻⁶/°C) and high thermal conductivity (100-200 W/(m・K)), making them ideal for extreme conditions involving high temperatures, speeds, and loads.
Q2: What are the differences between silicon nitride ceramics and alumina ceramics?
Hardness and Strength: Silicon nitride has higher hardness (close to corundum) and compressive strength (700-1000 MPa) compared to alumina ceramics.
Thermal Properties: Silicon nitride has a lower thermal expansion coefficient (about 3×10⁻⁶/°C), better thermal shock resistance, and suitability for environments with drastic temperature changes. Alumina has a higher thermal expansion coefficient and is prone to cracking due to thermal stress.
Corrosion Resistance: Silicon nitride offers better resistance to molten metals (e.g., magnesium, nickel-chromium alloys) and strong acids and alkalis. Alumina has slightly weaker high-temperature oxidation resistance.
Cost: Silicon nitride has a more complex production process and higher cost than alumina but is irreplaceable in high-end fields like aerospace and semiconductors.
Q3: How to address the brittleness of silicon nitride ceramics?
Traditional silicon nitride ceramics are brittle due to their strong covalent bond structure (fracture toughness 6 MPa・m¹/²). However, a team from Tsinghua University achieved 20% compressive plastic deformation at room temperature and increased compressive strength to 11 GPa by designing α/β common-lattice interfaces. This technology avoids crack propagation through a mechanism of "covalent bond breaking - rotation - rebounding," significantly enhancing the compressive strength and reliability of silicon nitride ceramics.
Q4: What are the main production processes for silicon nitride ceramic standard parts?
Reaction Sintering (RSN): Involves direct nitriding and molding of silicon powder. It is low-cost but results in low density (2.2-2.7 g/cm³), suitable for complex-shaped parts.
Hot Press Sintering (HPSN): Achieves densification under high temperature and pressure, with density up to 3.2 g/cm³ and high strength. However, processing is difficult and costly.
Gas Pressure Sintering (GPSN): Sintered in high-pressure nitrogen to reduce porosity and achieve excellent overall performance, commonly used for precision bearing balls.
Hot Isostatic Pressing (HIP): Further eliminates internal defects, suitable for high-reliability components in aerospace and other critical applications.
Q5: How to ensure the quality of silicon nitride ceramic standard parts?
International Standards: Standards such as ISO 26602 (silicon nitride materials for rolling bearings) and GB/T 31703-2015 (ceramic ball bearings silicon nitride balls) specify indicators like dimensional accuracy, hardness, and fracture toughness.
Testing Methods: Microstructure and mechanical properties are evaluated using Vickers hardness testers, three-point bending tests, and scanning electron microscopes (SEMs) to ensure batch stability.
