Niobium Silicide NbSi2 Powder CAS 12034-80-9

Item No.: Tr-NbSi2

Niobium silicide is also known as niobium disilicide, the chemical formula is NbSi2. NbSi2 powder is used for niobium silicide-based turbine components, high-temperature structural materials, etc.
Purity: 99%
Particle Size: 5-10um

COA-NbSi2 PowderDownload

INQUIRY

PDF Format

Description

Niobium Silicide Properties

About Niobium Silicide NbSi2 Powder:
Niobium Silicide NbSi2 is a gray hexagonal crystal with a density of 5.7g/mL (25℃) and a melting point of 1950℃. Niobium Silicide (NbSi2) is insoluble in water, concentrated hydrochloric acid and concentrated sulfuric acid, but soluble in a mixture of hydrofluoric acid and sulfuric acid.

Niobium silicide (NbSi2) is a gray hexagonal crystal. Relative density 5.7.The lattice constant port is 0. 4863nm, C=0. 6604nm.Melting point 1950℃, microhardness 10.3GPa (1050kg/mm2), Vickers hardness 5.88 ~ 6.88GPa (600 ~ 700kg/mm2), electrical conductivity 50.4×10-4 S/m, thermal expansion coefficient 7.3×10-6.℃ _1. Insoluble in water, concentrated hydrochloric acid, concentrated sulfuric acid, soluble in the mixed solution of hydrofluoric acid and sulfuric acid. Feel free to send an inquiry to get the latest price if you would like to buy Boron Carbide B4C Powder in bulk.

Characteristics of Niobium Silicide NbSi2 Powder:
Niobium silicide NbSi2 powder (CAS 12034-80-9) has high melting point, high corrosion resistance, high oxidation resistance, good electrical conductivity, high-temperature ductility, a binary alloy system the intermediate phase.

Technical Parameter of Niobium Silicide NbSi2 Powder:

Product Name	MF	Purity	Particle Size	Melting Point	Density	Color
niobium silicide	NbSi2	99%	5-10um	1940℃	5.7 g/cm3	black

Chemical Composition of Niobium Silicide NbSi2 Powder:

NbSi2	Nb	Si	C	P	Fe	S
＞99%	＞37.5%	balance	0.1%	0.02%	0.15%	0.03%

How is Niobium Silicide NbSi2 Powder produced?
Taking niobium and silicon as raw materials, the metal niobium and silicon are crushed and fully mixed into the graphite furnace. The furnace is heated and heated gradually. When the temperature reaches 1000℃, the metal reacts, and then hydrogen is added to make the temperature rise to 1400 ~ 1900℃, and then the reaction continues. Niobium pentoxide and silicon metal can also be put into the reduction furnace so that it is reduced at 1400℃ for more than 30 minutes, that is, niobium silicide.

Application of Niobium Silicide NbSi2 Powder:
Niobium Silicide NbSi2 powders can be combined with zirconium disilicate, molybdenum disilicate and tungsten trisilicate to form a solid solution and used as raw materials for fine ceramics. Niobium Silicide NbSi2 powder can also be used in niobium silicate-based turbine components, integrated circuits, high-temperature structural materials, etc.

Packing & Shipping of Niobium Silicide NbSi2 Powder:
We have many different kinds of packing which depend on the niobium silicide NbSi2 powder quantity.
Niobium silicide NbSi2 powder packing: vacuum packing, 1kg/bag, 25kg/barrel, or as your request.
Niobium silicide NbSi2 powder shipping: could be shipped out by sea, by air, by express as soon as possible once payment receipt.

Niobium Silicide Properties
Other Names	niobium disilicide, niobium(IV) silicide, NbSi2 powder
CAS No.	12034-80-9
Compound Formula	NbSi2
Molecular Weight	149.08

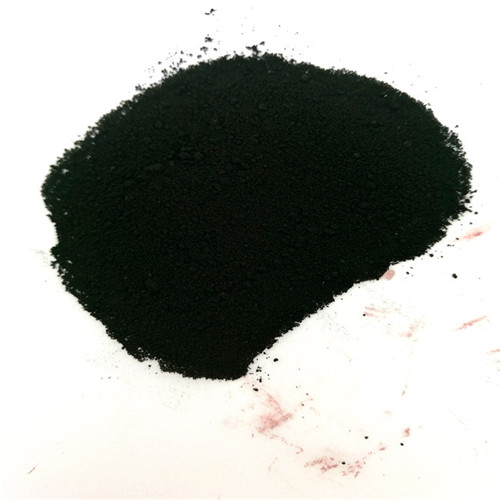

Appearance	Gray Black Powder
Melting Point	1950℃
Boiling Point	N/A
Density	5.53-5.7 g/cm3
Solubility in H2O	Insoluble
Exact Mass	148.860231


Niobium Silicide Health & Safety Information
Signal Word	N/A
Hazard Statements	N/A
Hazard Codes	N/A
Risk Codes	N/A
Safety Statements	N/A
Transport Information	NONH for all modes of transport
