Introduction of Silicon Nitride Nozzles
Silicon Nitride (Si₃N₄) nozzle is a special nozzle made of silicon nitride, a high-strength, high-temperature-resistant and wear-resistant ceramic material. It is manufactured through a precision machining process that maintains excellent physical and chemical properties under extreme conditions, and is widely used in industrial applications that require high resistance to abrasion, corrosion, and high temperatures.

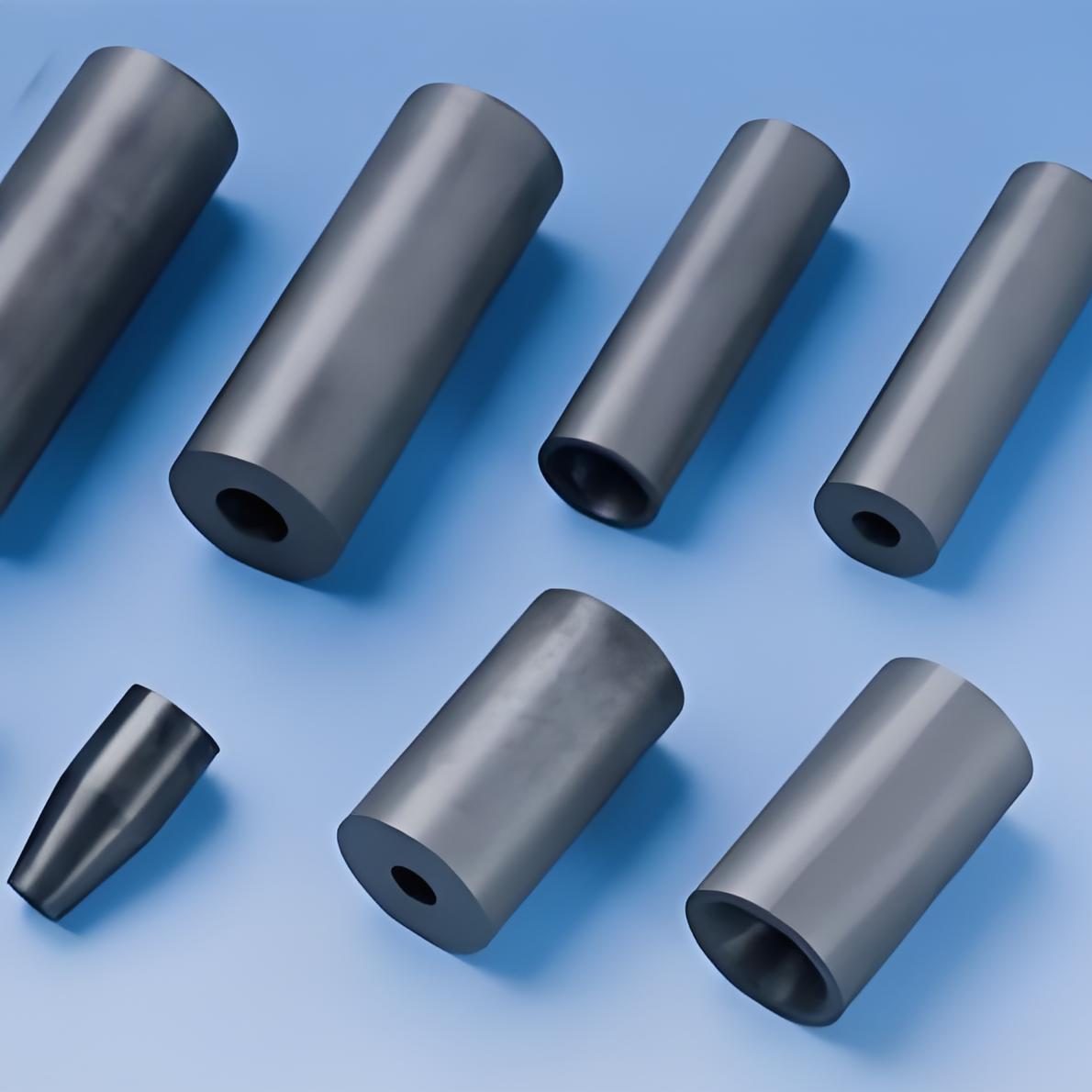

Silicon Nitride Nozzles
Features of Silicon Nitride Nozzles
Excellent mechanical strength: Silicon nitride has very high flexural strength and fracture toughness, which makes it perform well in high-stress environments.
Excellent heat resistance: able to withstand extremely high temperatures, typically up to 1400°C or more, and maintains stable mechanical properties at high temperatures.
Outstanding wear resistance: thanks to their high hardness and low coefficient of friction, silicon nitride nozzles exhibit remarkable wear resistance when confronted with abrasive media.
Good chemical stability: it shows excellent resistance to most acid and alkali solutions and other corrosive media, making it suitable for use in chemically aggressive environments.
Thermal shock resistance: maintains structural integrity even under rapid heating or cooling conditions, reducing the risk of damage due to sudden temperature changes.
Lightweight design: Silicon nitride nozzles are lighter than traditional metal materials, helping to reduce equipment weight and improve operational flexibility.
Smooth Inner Surface: Precision-machined, silicon nitride nozzles have a smooth inner wall, which reduces resistance to fluid flow and minimizes the risk of clogging.
Specifications of Silicon Nitride Nozzles
|
Property |
Specification |
|
Material Composition |
Si₃N₄ (Silicon Nitride) |
|
Density |
~3.20 g/cm³ |
|
Hardness (Vickers) |
~1500-1800 HV |
|
Fracture Toughness |
~6-7 MPa·m½ |
|
Young’s Modulus (Elastic Modulus) |
~280-320 GPa |
|
Compressive Strength |
~3000-4000 MPa |
|
Flexural Strength (Bending Strength) |
~800-1000 MPa |
|
Coefficient of Thermal Expansion |
~3.2 × 10⁻⁶ /°C (at room temperature to 1000°C) |
|
Thermal Conductivity |
~25-35 W/m·K |
|
Max Service Temperature in Air |
Up to 1200°C (continuous), up to 1400°C (intermittent) |
|
Chemical Resistance |
Excellent resistance to acids, alkalis, and molten metals |
|
Electrical Resistivity |
High (>10¹² Ω·cm at room temperature) |
|
Wear Resistance |
Excellent, suitable for high-wear applications |
|
Thermal Shock Resistance |
Outstanding, capable of withstanding rapid temperature changes |
|
Corrosion Resistance |
Superior, especially in aggressive environments |
|
Self-Lubricating Properties |
Reduces friction in moving parts |
|
Biocompatibility |
Suitable for medical applications |
|
Environmental Impact |
Environmentally friendly, no harmful substances |
|
Nozzle Dimensions |
Inner diameter, outer diameter, length, and nozzle shape can be customized based on application requirements |
|
Surface Finish |
Can be polished or left as-sintered depending on the application needs |
Applications of Silicon Nitride Nozzles
Water Jet Cutting: Used in high pressure water jet cutting machines as an outlet for the jet of water, they enable precise control of the cutting path and reduce wear and tear, and are particularly suitable for cutting metal, stone and composite materials.
Sandblast sandblasting cleaning: used in the surface treatment industry for sandblasting cleaning and polishing, providing efficient abrasive delivery while reducing wear on the nozzle itself.
Mining and quarrying industry: involved in processes such as ore crushing, drilling and rock cutting, where its excellent wear resistance dramatically reduces the frequency of replacement.
Chemical industry: used as pipe fittings in the transmission process involving strong acids, alkalis or other corrosive substances to ensure the long-term stable operation of the system.
Environmental protection equipment: Used in spray systems in wastewater treatment units or key parts of exhaust gas purification equipment to help realize resource recycling and reuse.
Agricultural irrigation: In some cases, silicon nitride nozzles are also used as highly efficient and water-saving irrigation sprinklers, especially in environments that require prolonged operation and poor water quality.
Metallurgy: Silicon nitride nozzles resist the erosion of molten metal during molten metal processing, such as nozzles for continuous casting machines or protection sleeves.
Aerospace: Due to its high temperature resistance and lightweight characteristics, its use in aero-engine components and space probes is gradually increasing.
Packing and Storage
The product is in powder form and should be stored in a cool, ventilated place. Avoid inhalation when using it and keep away from open flames, heat sources, etc.
Company Profile
Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.
The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.
If you are looking for high-quality Silicon Nitride Nozzles please feel free to contact us or click on the needed products to send an inquiry.
Company Profile
Payment Term
T/T, Western Union, Paypal, Credit Card etc.
Shipment Term
By air, by sea, by express, as customers request.
Packaging
FAQs of Silicon Nitride Nozzles
Question 1: Why are silicon nitride nozzles suitable for high temperature environments?
Answer: Silicon nitride nozzles are able to withstand extremely high temperatures, typically up to 1400°C or more, and maintain stable mechanical properties at high temperatures. This excellent heat resistance is due to the crystalline structure of the silicon nitride material itself, which not only has a high melting point, but also maintains good strength and hardness at high temperatures, making it ideal for use in high-temperature applications such as metallurgical and chemical industries.
Question 2: How do silicon nitride nozzles perform in water jet cutting?
Answer: In water jet cutting, the silicon nitride nozzle acts as an outlet for the jet stream, enabling precise control of the cutting path and reducing wear. Thanks to their excellent wear resistance and smooth inner surfaces, silicon nitride nozzles can work efficiently for long periods of time, providing stable and consistent cut quality, while extending nozzle life and reducing maintenance costs.
Question 3: What are the advantages of silicon nitride nozzles over other materials?
Answer: Compared with traditional metal or ceramic materials, silicon nitride nozzles have significant features such as higher mechanical strength, better wear resistance, excellent chemical stability, thermal shock resistance and lightweight design.
Question 4: In what special cases are silicon nitride nozzles not suitable?
Answer: Although silicon nitride nozzles have a wide range of applicability, they may not be suitable for use in extreme low-temperature environments, environments with large mechanical shocks, environments with frequent temperature changes, and other extreme conditions.
Question 5: How do I choose the right size and shape of silicon nitride nozzle?
Answer: You can choose the right size and shape of silicon nitride nozzle based on application needs, flow requirements, installation space, machining accuracy, etc., or directly consult with experienced suppliers or manufacturers, who can provide professional advice and support based on specific application scenarios, to help select the most suitable silicon nitride nozzle products.
