Product Overview
The NCM-Na-001 is a high-performance layered oxide cathode material specifically designed for sodium-ion batteries, featuring the classic Ni-Fe-Mn ternary system with an O3-type crystal structure. This material delivers a well-balanced combination of high energy density, long cycle life, and superior safety, making it the ideal cathode choice for a wide range of sodium-ion battery applications including energy storage systems, low-speed electric vehicles, e-bikes, and portable electronic devices.
Our comprehensive layered oxide portfolio covers the full spectrum of crystal structures—O3-type, P2-type, P2/O3 biphasic, single-crystal, and high-entropy variants—alongside diversified low-cost and high-performance modified systems based on Cu, Cr, Ti, and Mn chemistries, enabling tailored solutions for every application scenario.
NCM-Na-001
Features of NCM-Na-001 Layered Oxide Cathode
Balanced Electrochemical Performance
With an initial specific capacity of 160 mAh/g and 80% capacity retention after 100 cycles, this material delivers reliable, consistent performance suitable for mainstream sodium-ion battery applications.
O3-Type Crystal Structure
The O3-type layered structure provides a stable framework for sodium-ion intercalation/deintercalation, offering high voltage output and good structural integrity during cycling.
Classic Ternary Composition
The equimolar NaNi₁/₃Fe₁/₃Mn₁/₃O₂ composition leverages the synergistic effects of Ni (capacity), Fe (cost-effectiveness), and Mn (structural stability) for an optimal performance-to-cost balance.
Excellent Rate Capability
Maintains 80% capacity at 1C rate, demonstrating good kinetic performance for moderate to high-power applications.
Industry-Standard Manufacturing
Produced via mature high-temperature solid-state and sol-gel processes, enabling ton-scale production with excellent batch-to-batch consistency and controlled manufacturing costs.
Technical Parameters of NCM-Na-001 Layered Oxide Cathode
Material Specifications
|
Parameter |
Specification |
|---|---|
|
Product Code |
NCM-Na-001 |
|
Material System |
Classic Ternary Equimolar System |
|
Chemical Composition |
NaNi₁/₃Fe₁/₃Mn₁/₃O₂ |
|
Crystal Structure |
O3-Type |
|
Operating Voltage Range |
2.0 – 4.2 V |
|
Initial Specific Capacity |
160 mAh/g |
|
Cycling Stability |
80% retention after 100 cycles |
|
Rate Capability |
80% capacity at 1C |
|
Technical Highlights |
Balanced overall performance, industry benchmark |
Physical Properties
|
Parameter |
Specification |
|---|---|
|
Appearance |

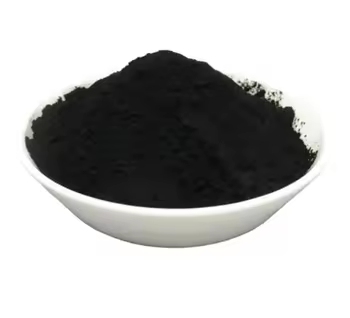

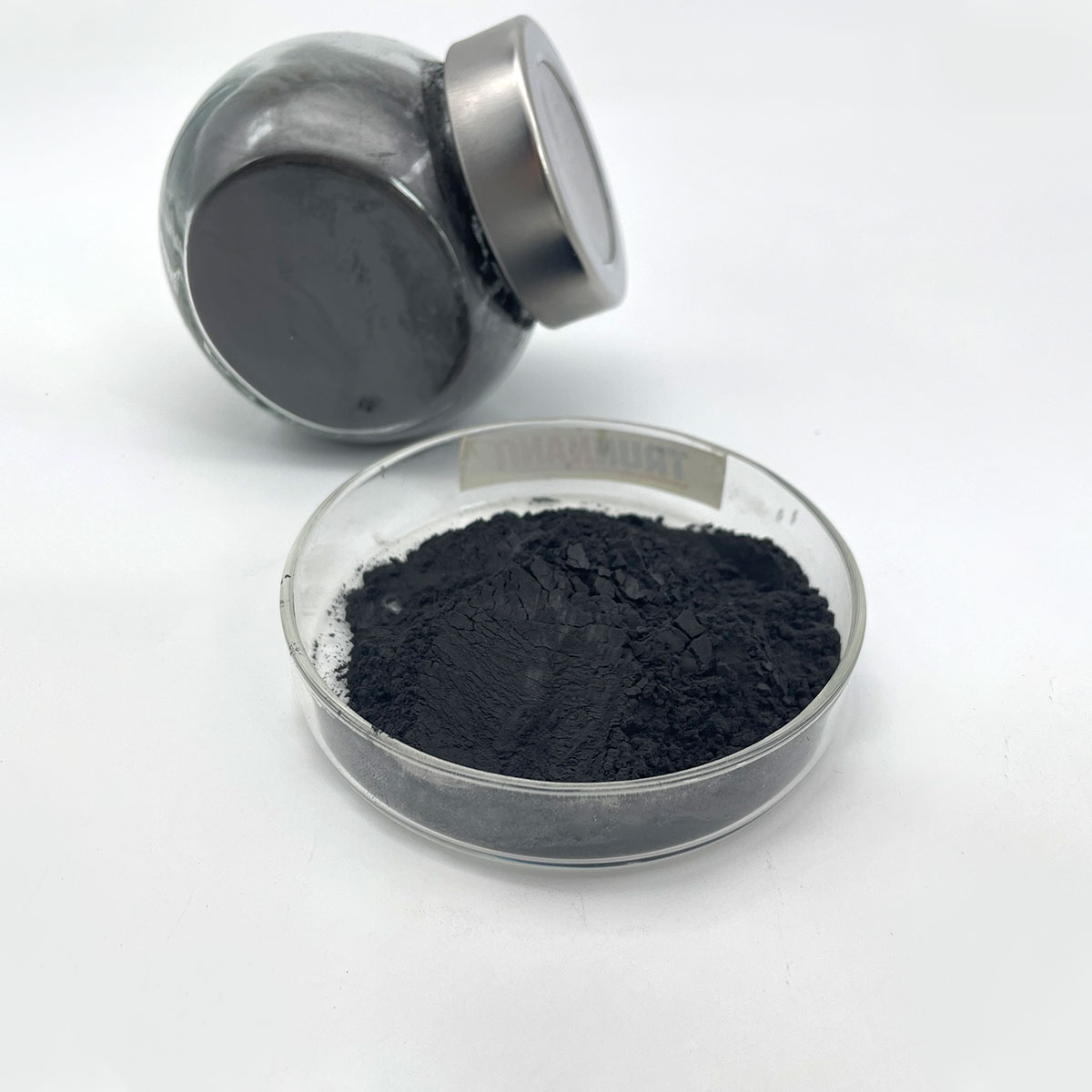

Black powder |
|
Particle Size D50 |
5 – 20 μm (customizable) |
|
Specific Surface Area (BET) |
1 – 5 m²/g (customizable) |
|
Tap Density |
1.8 – 2.8 g/cm³ (customizable) |
|
Moisture Content |
≤ 500 ppm |
|
Magnetic Foreign Particles |
≤ 100 ppb |
Applications of NCM-Na-001 Layered Oxide Cathode
Grid-Scale Energy Storage Systems
Ideal for large-scale photovoltaic/wind power storage, grid peak shaving, and frequency regulation applications where long cycle life, high safety, and cost-effectiveness are paramount.
Low-Speed Electric Vehicles
Suited for electric two-wheelers, three-wheelers, and low-speed four-wheel vehicles, delivering high energy density, fast-charging capability, and excellent low-temperature adaptability.
Portable Electronic Devices
Perfect for power banks, outdoor power supplies, and portable medical equipment, offering high voltage platform, high specific capacity, and extended cycle life.
Specialty Applications
Customizable formulations available for extreme environments including low-temperature, high-temperature, and high-safety scenarios such as military, aerospace, and deep-sea applications.
Package of NCM-Na-001 Layered Oxide Cathode
Standard Packaging
Vacuum-sealed moisture-barrier packaging using aluminum-laminated film or PE bags, placed inside sturdy cartons.
Packaging dimensions and weights are customizable based on customer requirements.
Storage & Handling
Store in a dry, cool, well-ventilated environment away from moisture, heat, and contaminants.
Avoid exposure to strong acids, alkalis, and oxidizing agents.
Handle with care during transport to prevent packaging damage.
Recommended shelf life: 12 months from date of manufacture under sealed, proper storage conditions.
After opening, unused material should be immediately resealed and stored in a dry environment.
5 FAQs of NCM-Na-001 Layered Oxide Cathode
Q1: What is the difference between O3-type and P2-type layered oxide cathodes?
O3-type materials typically offer higher initial capacity and higher voltage platforms, while P2-type materials often provide better cycling stability and rate performance. The NCM-Na-001 uses an O3-type structure for balanced performance in mainstream applications.
Q2: What is the recommended operating voltage range?
The recommended operating voltage range is 2.0 – 4.2 V vs. Na⁺/Na. Optimal cycling performance is achieved within this window.
Q3: Can this material be used in both sodium-ion and lithium-ion batteries?
This material is specifically designed and optimized for sodium-ion battery systems. It is not recommended for lithium-ion battery applications.
Q4: Is the material compatible with existing cathode production lines?
Yes, NCM-Na-001 is processed using conventional cathode manufacturing equipment and is fully compatible with standard electrode coating and calendering processes.
Q5: What customization options are available?
We offer comprehensive customization including elemental composition, crystal structure, particle size distribution, specific surface area, tap density, and performance optimization for specific application requirements. Please contact our technical sales team for detailed discussions.
