Electrical Insulation AlN sheet Aluminium Nitride Ceramic Plate

Product Introduction of Aluminum Nitride Ceramic Plates
Aluminum Nitride (AlN) ceramic plate is a high-performance ceramic product made from high-purity aluminum nitride powder through precision molding and high-temperature sintering processes. This material is favored for its excellent thermal conductivity, electrical insulation and mechanical strength for a wide range of high-tech applications. Aluminum nitride ceramic plates have a low coefficient of thermal expansion (CTE), similar to that of semiconductor materials such as silicon, which ensures stability during temperature changes. Their surfaces can be finely machined to achieve optical-grade smoothness, making them ideal for application scenarios where precision is critical. In addition, aluminum nitride ceramic plates can be customized in terms of size, thickness, and surface treatment to meet the specific needs of different customers. Whether used as functional components or structural supports, aluminum nitride ceramic plates provide stable and reliable performance and are widely used in electronics, optics, laser technology and aerospace.

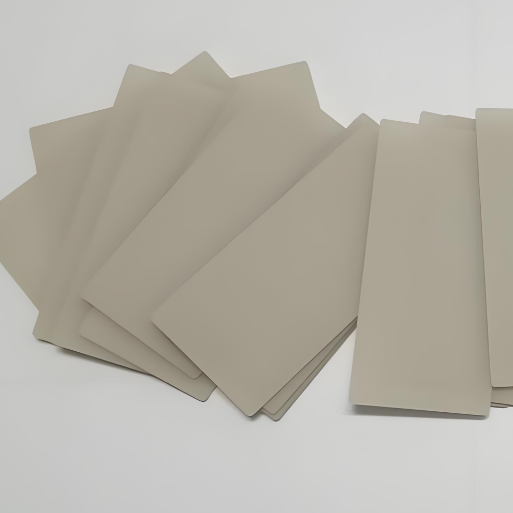

AlN ceramic sheet

Specification of Aluminum Nitride Ceramic Plates



Characteristic Advantages of Aluminum Nitride Ceramic Plates
Aluminum nitride ceramic plates stand out for their unique properties, making them ideal for many demanding applications.

It boasts an excellent thermal conductivity (170 to 220 W/m-K) that far exceeds that of conventional ceramic materials, allowing it to dissipate heat efficiently and maintain the temperature stability of devices during high-power operation.

Despite its excellent thermal conductivity, aluminum nitride ceramic sheet maintains excellent electrical insulation, making it ideal for electronic packaging and semiconductor devices, especially in applications requiring strict electrical isolation.

Its coefficient of thermal expansion (CTE) is close to that of silicon (approximately 4.5-5.0 ppm/°C), which helps to minimize stresses due to temperature changes and improve long-term reliability.

Aluminum nitride ceramic plates exhibit excellent chemical stability and are resistant to acid and alkali corrosion and molten metal erosion, ensuring long-lasting durability in harsh environments.

Although it is a brittle material, it can withstand certain mechanical loads after careful design and manufacturing and can obtain higher hardness and flatness through appropriate surface treatment, making it ideal for precision instruments and high-end electronic products.

Applications of Aluminum Nitride Ceramic Plates
Aluminum nitride ceramic plates find a wide range of applications in several industries due to their excellent performance.

In the electronics industry, they are often used as heat sinks, power module backplanes, and LED substrates, utilizing their highly efficient thermal conductivity to manage heat and enhance brightness and lifetime.

For laser technology and optoelectronics, aluminum nitride ceramic plates are ideal for the manufacture of optical windows, lenses, and other optoelectronic components thanks to their transparency and thermal stability at specific wavelengths.

In the automotive industry, aluminum nitride ceramic sheets are used in sensor assemblies and ignition system components to withstand extreme temperatures and corrosive conditions. The aerospace and defense sectors value its ability to work reliably under extreme conditions, such as in avionics and radar system applications.

Aluminum nitride ceramic plates also have applications in certain medical implants or diagnostic equipment due to their biocompatibility and resistance to body fluids.

Company Profile

Luoyang Tongrun Nano Technology Co. Ltd. (TRUNNANO) is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, ceramic products, 3D printing powder, etc.

The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.

If you are looking for high-quality Aluminum Nitride Ceramic sheets please feel free to contact us or click on the needed products to send an inquiry.

Payment Term
T/T, Western Union, Paypal, Credit Card etc.

Shipment Term
By air, by sea, by express, as customers request.

FAQs of Aluminum Nitride Ceramic Plates

Q1: What is the thermal conductivity of aluminum nitride ceramic plates?
A1: Aluminum nitride (AlN) ceramic plates are known for their excellent thermal conductivity, which ranges from 170 to 220 W/m-K. This characteristic makes them effective in applications that require efficient heat dissipation, such as high-power electronic devices and semiconductor packages. Aluminum nitride's thermal conductivity is closer to that of metals than other ceramic materials, and it is able to conduct and dissipate heat quickly to ensure stable operation at high temperatures, resulting in longer service life and improved reliability.

Q2: Are Aluminum Nitride ceramic plates suitable for electronic applications?
A2: Yes, aluminum nitride ceramic plates are very suitable for electronic applications. Not only do they have excellent thermal conductivity, but they also have excellent electrical insulation and a low coefficient of thermal expansion (CTE), which is similar to that of silicon and reduces the stress caused by temperature changes. These properties make them ideal for electronic packaging, semiconductor devices and high-frequency circuits. Additionally, its chemical stability ensures that long-term use in corrosive environments will not compromise electrical performance or structural integrity.

Q3: Can Aluminum Nitride ceramic plates withstand high-temperature environments?
A3: Aluminum nitride ceramic plates are capable of maintaining stable performance at extreme temperatures. The material itself is thermally stable and chemically resistant and can withstand temperatures of up to 1,600°C or more without decomposing or losing functionality. For this reason, they are widely used in furnaces, kilns and metallurgical processes involving molten metals. Aluminum nitride ceramic plates maintain structural integrity and operating efficiency even under sustained high temperatures and corrosive conditions, making them a reliable choice for high-temperature industrial applications.

Q4: What is the price of Aluminum Nitride Ceramic Plates?
A4: Aluminum nitride ceramic plates are typically more expensive than traditional ceramic materials, primarily due to the complexity of the production process and the higher cost of raw materials. The exact price depends on a number of factors, including size, shape, purity requirements and whether custom processing is required. Despite the larger initial investment, many high-end applications still prefer this high-performance material given the long-term economic benefits of its excellent properties - such as efficient thermal management and long life. When purchasing, it is recommended to evaluate the price/performance ratio based on actual needs.

Q5: How do I handle aluminum nitride ceramic plates to avoid damage?
A5: Although aluminum nitride ceramic plates are hard and have good strength, they are a brittle material and are prone to breakage due to improper handling. To prevent damage, care should be taken during handling and installation: avoid dropping or impact; do not apply excessive pressure or bending force; and for precision parts, soft tools are recommended for handling. In addition, storage should be in a flat, stable area, and stacking heights should be minimized to reduce potential risks. Following proper handling guidelines can significantly extend product life.
