Product Overview
The Co-001 is a classic O3-type layered oxide cathode material designed for sodium-ion batteries, featuring the well-established composition NaCoO₂. This material delivers an outstanding initial specific capacity of 160 mAh/g and is engineered to provide a high voltage platform, making it a reliable and proven cathode choice for sodium-ion battery applications requiring high capacity and stable performance. As one of the earliest developed and most thoroughly studied layered oxide systems, Co-001 benefits from extensive research and industrial validation, offering mature, well-understood electrochemical characteristics. Our comprehensive layered oxide portfolio covers the full spectrum of crystal structures—O3-type, P2-type, P2/O3 biphasic, single-crystal, and high-entropy variants—alongside diversified low-cost and high-performance modified systems based on Cu, Cr, Ti, and Mn chemistries, enabling tailored solutions for every application scenario.
Co-001
Product Features
High Initial Capacity
Delivers an impressive 160 mAh/g initial specific capacity, providing high energy density for demanding battery applications.
High Voltage Platform
The O3-type structure provides a stable high-voltage output, contributing to enhanced energy density and system efficiency.
Classic O3-Type Structure
The well-characterized O3-type layered structure offers reliable sodium-ion intercalation/deintercalation pathways with stable electrochemical performance.
Proven Industrial Technology
As one of the earliest commercialized sodium cathode materials, Co-001 benefits from mature manufacturing processes and extensive industrial validation.
Excellent Rate Capability
Maintains 85% capacity at 1C rate, demonstrating robust kinetic performance for moderate to high-power applications.
Industry-Standard Manufacturing
Produced via mature high-temperature solid-state and sol-gel processes, enabling ton-scale production with excellent batch-to-batch consistency and controlled manufacturing costs.
Technical Parameters
Material Specifications
|
Parameter |
Specification |
|---|---|
|
Product Code |
Co-001 |
|
Material System |
Cobalt-Based Classic System |
|
Chemical Composition |
NaCoO₂ |
|
Crystal Structure |
O3-Type |
|
Operating Voltage Range |
2.0 – 4.0 V |
|
Initial Specific Capacity |
160 mAh/g |
|
Cycling Stability |
80% retention after 100 cycles |
|
Rate Capability |
85% capacity at 1C |
|
Technical Highlights |
Classic layered oxide, high voltage platform, early industrial adoption |
Physical Properties
|
Parameter |
Specification |
|---|---|
|
Appearance |

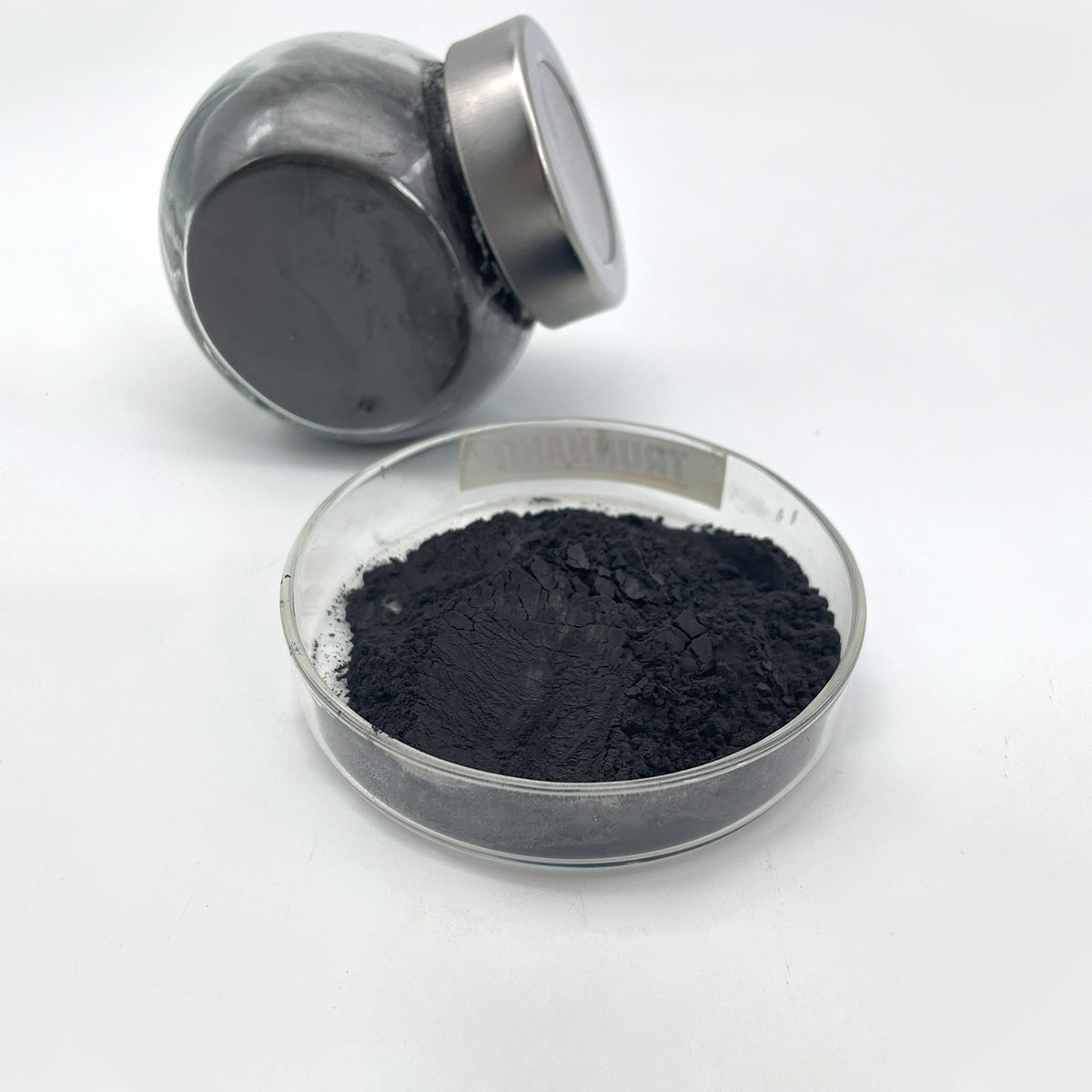

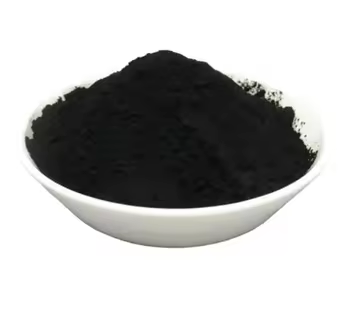

Black powder |
|
Particle Size D50 |
5 – 20 μm (customizable) |
|
Specific Surface Area (BET) |
1 – 5 m²/g (customizable) |
|
Tap Density |
1.8 – 2.8 g/cm³ (customizable) |
|
Moisture Content |
≤ 500 ppm |
|
Magnetic Foreign Particles |
≤ 100 ppb |
Applications
Grid-Scale Energy Storage Systems
Suitable for photovoltaic/wind power storage, grid peak shaving, and frequency regulation applications where reliable performance and stable cycling are required.
Low-Speed Electric Vehicles
Applicable for electric two-wheelers, three-wheelers, and low-speed four-wheel vehicles, delivering high capacity and stable power output.
Portable Electronic Devices
Suitable for power banks, outdoor power supplies, and portable medical equipment, offering high voltage platform and reliable capacity.
Specialty Applications
Customizable formulations available for extreme environments including low-temperature, high-temperature, and high-safety scenarios such as military, aerospace, and deep-sea applications.
About Us
TRUNNANO is a leading supplier of high-performance battery materials for lithium-ion and sodium-ion batteries. Our portfolio includes nano cathodes, silicon-carbon anodes, hard carbon, and specialty additives. With strict quality control and consistent purity, we deliver reliable solutions for 3C electronics, power tools, and energy storage systems. Committed to innovation, TRUNNANO drives the future of energy storage with cutting-edge materials and dedicated customer support.
Package
Standard Packaging
Vacuum-sealed moisture-barrier packaging using aluminum-laminated film or PE bags, placed inside sturdy cartons.
Packaging dimensions and weights are customizable based on customer requirements.
Storage & Handling
Store in a dry, cool, well-ventilated environment away from moisture, heat, and contaminants.
Avoid exposure to strong acids, alkalis, and oxidizing agents.
Handle with care during transport to prevent packaging damage.
Recommended shelf life: 12 months from date of manufacture under sealed, proper storage conditions.
After opening, unused material should be immediately resealed and stored in a dry environment.
FAQ
Q1: What is the significance of Co-001 as a classic material?
Co-001 represents one of the earliest and most thoroughly studied sodium-ion layered oxide cathodes. Its well-characterized electrochemical behavior, mature manufacturing processes, and extensive industrial validation make it a reliable baseline material for sodium-ion battery development and production.
Q2: How does the capacity of Co-001 compare to other cathode materials?
With 160 mAh/g initial specific capacity, Co-001 offers competitive capacity output. However, the use of cobalt makes it more expensive than copper-based alternatives like Cu-HC-010 or Cu-IND-009, which offer similar capacity at lower cost.
Q3: What is the recommended operating voltage range?
The recommended operating voltage range is 2.0 – 4.0 V vs. Na⁺/Na. Stable cycling performance and reliable capacity output are achieved within this window.
Q4: Can this material be used in both sodium-ion and lithium-ion batteries?
This material is specifically designed and optimized for sodium-ion battery systems. It is not recommended for lithium-ion battery applications.
Q5: How does the rate capability of 85% at 1C benefit applications?
The 85% capacity retention at 1C demonstrates good kinetic performance, ensuring reliable power delivery under moderate discharge rates. This makes Co-001 suitable for applications requiring both high capacity and reasonable power output.
Q6: What customization options are available for this product?
We offer comprehensive customization including elemental composition, crystal structure, particle size distribution, specific surface area, tap density, and performance optimization for specific application requirements. Please contact our technical sales team for detailed discussions.
