What is Nano Alumina?
Nano alumina is a kind of alumina powder with a particle size of a nanometer; the size of the powder is between 1-100 nm; nano alumina is a white powder, the crystalline phase is α-Al2O3, with high temperature inert, it still has high strength, high toughness, corrosion resistance, anti-wear, high insulation, and high chemical stability at high temperature, and nano alumina is the hardest material in the world after diamond (for example, diamond is the hardest known material, its Mohs hardness is 10, alumina's Mohs hardness is 9 ).
Nano Alumina: α-Al₂O₃ Nanopowder for Advanced Ceramics
Al2O3 porcelain sintered products have a flexural strength of up to 250 MPa, and hot pressed products up to 500 MPa. The purer the composition of Al2O3, the higher the strength. Strength can be maintained at high temperatures up to 900°C. With its mechanical strength, it can be used to make device ceramics and other mechanical components. Ceramics sintered with nano-alumina have increased strength and are less prone to fracture.
Nano alumina represents a significant advancement in ceramic materials, combining the exceptional properties of α-Al₂O₃ with the unique characteristics conferred by nanoscale dimensions. The reduction in particle size to the nanometer range dramatically increases the specific surface area, enhances reactivity, and improves the sintering behavior of the material. The α-Al₂O₃ phase is the most thermodynamically stable form of alumina, characterized by its hexagonal close-packed oxygen lattice with aluminum ions occupying two-thirds of the octahedral sites. This structure gives α-Al₂O₃ its exceptional hardness (9 on the Mohs scale), making it second only to diamond. The high-temperature inertness of nano alumina ensures its stability and performance in demanding applications where other materials would degrade or fail. The combination of high strength, toughness, corrosion resistance, and wear resistance makes nano alumina an ideal material for advanced ceramic applications. The high insulation and chemical stability of nano alumina contribute to its use in electronic and chemical applications. The development of new synthesis methods for nano alumina continues to expand its range of applications and improve its performance. The environmental benefits of nano alumina, including its non-toxic nature and durability, make it an attractive material for sustainable industrial applications. The continued research on the properties and applications of nano alumina is expected to lead to new innovations and expanded applications in various fields. The versatility of nano alumina and its unique combination of properties position it as a key enabling material for next-generation technologies.
Properties of Nano Alumina
Nano alumina materials have special photoelectric properties, high magnetoresistance phenomenon, non-linear resistance phenomenon, high strength, high toughness, good stability and other exotic properties at high temperatures, as well as a variety of nano-powder materials common small size effect, surface interface effect, quantum size effect and macroscopic quantum tunneling effect, so alumina ceramics can be used to manufacture high-speed cutting tools, high-temperature thermocouple casing, chemical high-pressure mechanical pump parts, internal combustion engine spark plug, artificial joints and aviation magnetic fluid power generation materials and a variety of ceramic devices.
The unique properties of nano alumina arise from its extremely small particle size and high specific surface area. The small size effect of nano alumina results in significantly different properties compared to bulk alumina, including enhanced reactivity, improved sintering behavior, and superior mechanical properties. The surface interface effect of nano alumina is characterized by a high proportion of surface atoms, which contribute to its enhanced catalytic activity and adsorption capacity. The quantum size effect of nano alumina results in changes in its electronic and optical properties, making it suitable for advanced optical and electronic applications. The macroscopic quantum tunneling effect of nano alumina contributes to its unusual magnetic and electrical properties, which are being explored for various applications. The photoelectric properties of nano alumina make it valuable for optical and electronic devices. The high magnetoresistance of nano alumina is of interest for magnetic sensing and data storage applications. The non-linear resistance of nano alumina makes it suitable for varistor and surge protection applications. The high strength and toughness of nano alumina make it valuable for structural applications where mechanical performance is critical. The good stability of nano alumina at high temperatures ensures reliable performance in demanding applications. The combination of these unique properties makes nano alumina an ideal material for a wide range of advanced applications, including cutting tools, thermocouple casings, pump parts, spark plugs, artificial joints, and aerospace components. The continued research on the properties of nano alumina is expected to lead to new discoveries and expanded applications in various fields.
Key Properties of Nano Alumina
The use of nano alumina in ceramics provides a range of benefits that enhance the performance and durability of ceramic products. The high melting point of alumina (2072°C) enables its use in high-temperature applications where other materials would soften or melt. The hardness of alumina (9 on the Mohs scale) provides excellent wear resistance, protecting ceramic components from abrasion and erosion. The chemical resistance of alumina ensures that ceramic components are stable in aggressive chemical environments, resisting attack by acids, bases, and solvents. The dielectric properties of alumina, including its high electrical resistivity and low dielectric loss, make it valuable for electronic applications. The use of nano alumina as a surface coating material provides a means of modifying the surface properties of components, improving their mechanical, thermal, optical, electromagnetic, and catalytic performance. The surface modification of materials using nano alumina coatings enables the development of advanced functional materials with tailored properties for specific applications. The continued research on the use of nano alumina in ceramics and coatings is expected to lead to new innovations and expanded applications in various fields. The combination of excellent properties and versatility makes nano alumina a valuable material for advanced ceramic applications. The integration of nano alumina into ceramic composites and coatings offers the potential for improved performance and new functionalities.
Application of Nano Alumina
Nano alumina can be made into light-transmitting materials (light-transmitting Al2O3 porcelain) for the manufacture of sodium vapor lamps, microwave rectifiers, infrared windows, laser oscillation elements, etc.
The transparency of nano alumina ceramics to visible and infrared light makes them valuable for optical applications. The production of light-transmitting Al₂O₃ porcelain involves the sintering of high-purity nano alumina at high temperatures, resulting in a dense, transparent material with excellent optical and mechanical properties. The use of transparent alumina in sodium vapor lamps takes advantage of its high transparency and thermal stability, enabling efficient light emission and long service life. The use of alumina in microwave rectifiers is based on its dielectric properties and thermal stability, ensuring reliable performance in high-frequency applications. The infrared transparency of alumina makes it suitable for infrared windows and optical components, where it provides protection while allowing infrared radiation to pass through. The use of alumina in laser oscillation elements is based on its optical properties and thermal conductivity, enabling efficient laser operation. The development of new transparent alumina ceramics continues to expand the range of applications for this versatile material. The combination of optical transparency, thermal stability, and mechanical strength makes transparent alumina ceramics valuable for a wide range of optical and electronic applications. The continued research on the optical properties of alumina is expected to lead to new innovations and expanded applications in various fields.
Nano alumina can be used as solar cell material and battery material.
The use of nano alumina in solar cells and batteries is based on its electrical, optical, and electrochemical properties. In solar cells, alumina is used as a passivation layer, reducing surface recombination and improving the efficiency of the cell. The use of alumina as a dielectric layer in solar cells enhances the electrical performance and stability of the device. In batteries, alumina is used as a coating material for electrodes, improving their stability and performance. The use of nano alumina in battery separators provides improved thermal stability and safety, reducing the risk of thermal runaway. The high surface area and electrochemical stability of nano alumina make it suitable for use in various energy storage applications. The development of new nano alumina-based materials for solar cells and batteries is an area of active research, driven by the demand for more efficient and sustainable energy technologies. The continued research on the energy applications of nano alumina is expected to lead to new innovations and improved performance in various fields. The combination of electrical, optical, and electrochemical properties makes nano alumina a valuable material for energy applications. The integration of nano alumina into solar cells and batteries offers the potential for improved performance and new functionalities.
Main Applications of Nano Alumina
The impact of nanoscience and technology on the alumina industry has been transformative, enabling the development of new materials with enhanced properties and expanded applications. Nano alumina is a special functional material that combines the exceptional properties of alumina with the unique characteristics of nanoscale materials. The high hardness and strength of nano alumina make it suitable for precision ceramics and structural applications. The corrosion resistance and wear resistance of nano alumina ensure long-term durability in demanding environments. The high-temperature resistance of nano alumina enables its use in high-temperature applications, such as refractory materials and aerospace components. The high insulation and oxidation resistance of nano alumina make it valuable for electronic and chemical applications. The use of nano alumina in bio-ceramics takes advantage of its biocompatibility and wear resistance, making it suitable for biomedical implants and devices. The use of nano alumina in chemical catalysts is based on its high surface area and surface reactivity, enabling efficient catalytic reactions. The continued research on nano alumina is expected to lead to new innovations and expanded applications in various fields. The growing demand for advanced materials with enhanced properties is expected to drive continued growth in the production and use of nano alumina. The integration of nano alumina into emerging technologies, such as nanotechnology, biotechnology, and information technology, offers the potential for new applications and improved performance.

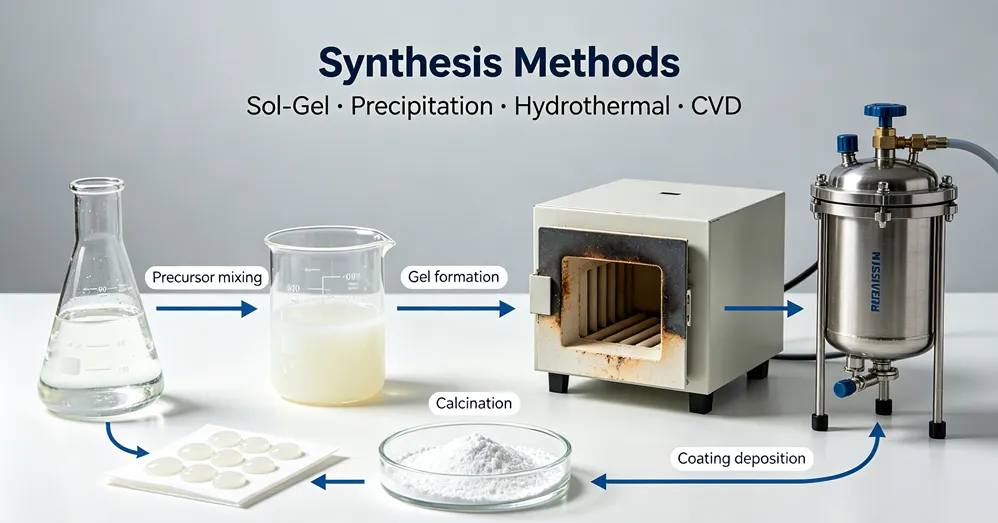

Synthesis Methods of Nano Alumina
The production of nano alumina can be achieved through several methods, each offering distinct advantages depending on the desired purity, particle size, and application requirements.
Sol-Gel Method: This method uses aluminum alkoxides or inorganic salts as precursors, which undergo hydrolysis and condensation to form a sol. The sol is then aged to form a gel, which is dried and calcined to produce nano alumina. The sol-gel method offers excellent control over particle size, morphology, and purity, making it suitable for high-performance applications.
Precipitation Method: Aluminum salts are reacted with a base to precipitate aluminum hydroxide, which is then calcined to produce nano alumina. This method is relatively simple and cost-effective, but the product purity and particle size distribution may be less controlled than other methods.
Hydrothermal Method: Aluminum precursors are reacted in an autoclave under high temperature and pressure to produce nano alumina with controlled particle size and morphology. This method is particularly suitable for producing high-purity nano alumina with narrow particle size distribution.
Combustion Synthesis: Aluminum nitrate and a fuel (such as urea or glycine) are ignited to produce a self-propagating combustion reaction, resulting in the formation of nano alumina. This method is rapid and energy-efficient, but the product purity may be affected by the presence of impurities.
Chemical Vapor Deposition (CVD): Aluminum precursors are vaporized and reacted in a gas phase to deposit nano alumina on a substrate. This method is suitable for producing thin films and coatings with controlled properties.
Selection Considerations: The choice of synthesis method depends on the specific requirements of the application, including the desired purity, particle size, morphology, and cost. The continued research on the synthesis of nano alumina is expected to lead to new innovations and improved product quality. The development of new synthesis methods and the optimization of existing processes are important for expanding the range of applications for nano alumina.
Synthesis Methods of Nano Alumina
Quality Control and Characterization of Nano Alumina
The quality of nano alumina is critical for its performance in various applications, requiring rigorous quality control and characterization.
Particle Size Distribution: The particle size of nano alumina is a critical parameter that influences its properties and performance. Particle size distribution is typically measured using techniques such as laser diffraction, dynamic light scattering, and electron microscopy.
Phase Composition: The crystal phase of nano alumina (α, γ, or other phases) significantly affects its properties. Phase composition is determined using X-ray diffraction (XRD), which provides information on the crystal structure and phase purity of the material.
Specific Surface Area: The specific surface area of nano alumina is an important parameter for catalytic and adsorption applications. Specific surface area is measured using the Brunauer-Emmett-Teller (BET) method, which involves nitrogen adsorption at low temperatures.
Chemical Composition: The purity of nano alumina is critical for its performance in sensitive applications. Chemical composition is analyzed using techniques such as inductively coupled plasma (ICP), atomic absorption spectroscopy (AAS), and X-ray fluorescence (XRF).
Morphology: The morphology of nano alumina particles, including their shape and surface structure, influences their properties and performance. Morphology is characterized using scanning electron microscopy (SEM) and transmission electron microscopy (TEM).
Quality Assurance: The implementation of quality assurance protocols ensures that nano alumina products meet the required specifications and performance standards. The development of new characterization techniques and quality control standards is essential for ensuring the quality and reliability of nano alumina products. The continued research on the characterization of nano alumina is expected to lead to new innovations and improved product quality.
Quality Control and Characterization
Nano Alumina Powder Price
The price is influenced by many factors, such as the supply and demand in the market, industry trends, economic activity, market sentiment, and unexpected events.
If you are looking for the latest nano alumina powder price, you can feel free to send us your inquiry for a quote.
Nano Alumina Powder Supplier
TRUNNANO is a trusted nano alumina powder manufacturer and Al2O3 powder supplier with over 12-year-experience. We ship our goods all over the world.
If you are looking for high-quality nano alumina powder, please feel free to contact us and send an inquiry. (sales3@nanotrun.com)
